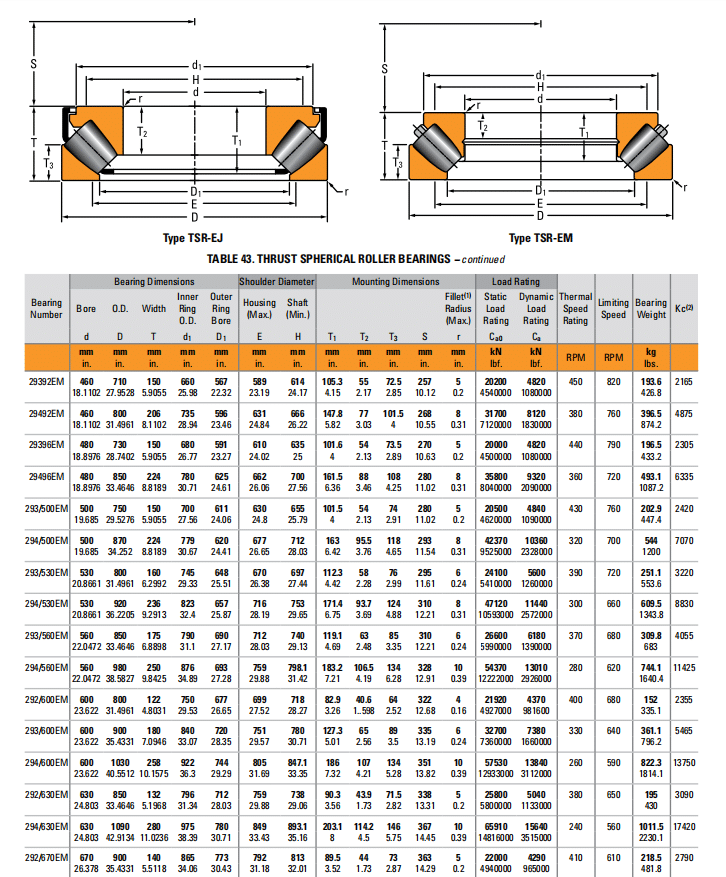

Timken Bearing
| Bearing Number |
Bore d |
Bearing Dimensions Inner |
Outer Ring Bore D1 |
Shoulder Diameter
Housing Shaft (Max.) (Min.) E H |
T1 |
Mounting Dimensions
T2 T3 S |
Fillet(1)
Radius (Max.) r |
Bearing Weight |
|||||
| O.D.
D |
Width
T |
Ring
O.D. 1 |
|||||||||||
| mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
kg
lbs. |
|
| 29392EM | 460
18.1102 |
710
27.9528 |
150
5.9055 |
660
25.98 |
567
22.32 |
589
23.19 |
614
24.17 |
105.3
4.15 |
55
2.17 |
72.5
2.85 |
257
10.12 |
5
0.2 |
193.6
426.8 |
| 29492EM | 460
18.1102 |
800
31.4961 |
206
8.1102 |
735
28.94 |
596
23.46 |
631
24.84 |
666
26.22 |
147.8
5.82 |
77
3.03 |
101.5
4 |
268
10.55 |
8
0.31 |
396.5
874.2 |
| 29396EM | 480
18.8976 |
730
28.7402 |
150
5.9055 |
680
26.77 |
591
23.27 |
610
24.02 |
635
25 |
101.6
4 |
54
2.13 |
73.5
2.89 |
270
10.63 |
5
0.2 |
196.5
433.2 |
| 29496EM | 480
18.8976 |
850
33.4646 |
224
8.8189 |
780
30.71 |
625
24.61 |
662
26.06 |
700
27.56 |
161.5
6.36 |
88
3.46 |
108
4.25 |
280
11.02 |
8
0.31 |
493.1
1087.2 |
| 293/500EM | 500
19.685 |
750
29.5276 |
150
5.9055 |
700
27.56 |
611
24.06 |
630
24.8 |
655
25.79 |
101.5
4 |
54
2.13 |
74
2.91 |
280
11.02 |
5
0.2 |
202.9
447.4 |
| 294/500EM | 500
19.685 |
870
34.252 |
224
8.8189 |
779
30.67 |
620
24.41 |
677
26.65 |
712
28.03 |
163
6.42 |
95.5
3.76 |
118
4.65 |
293
11.54 |
8
0.31 |
544
1200 |
| 293/530EM | 530
20.8661 |
800
31.4961 |
160
6.2992 |
745
29.33 |
648
25.51 |
670
26.38 |
697
27.44 |
112.3
4.42 |
58
2.28 |
76
2.99 |
295
11.61 |
6
0.24 |
251.1
553.6 |
| 294/530EM | 530
20.8661 |
920
36.2205 |
236
9.2913 |
823
32.4 |
657
25.87 |
716
28.19 |
753
29.65 |
171.4
6.75 |
93.7
3.69 |
124
4.88 |
310
12.21 |
8
0.31 |
609.5
1343.8 |
| 293/560EM | 560
22.0472 |
850
33.4646 |
175
6.8898 |
790
31.1 |
690
27.17 |
712
28.03 |
740
29.13 |
119.1
4.69 |
63
2.48 |
85
3.35 |
310
12.21 |
6
0.24 |
309.8
683 |
| 294/560EM | 560
22.0472 |
980
38.5827 |
250
9.8425 |
876
34.89 |
693
27.28 |
759
29.88 |
798.1
31.42 |
183.2
7.21 |
106.5
4.19 |
134
6.28 |
328
12.91 |
10
0.39 |
744.1
1640.4 |
| 292/600EM | 600
23.622 |
800
31.4961 |
122
4.8031 |
750
29.53 |
677
26.65 |
699
27.52 |
718
28.27 |
82.9
3.26 |
40.6
1..598 |
64
2.52 |
322
12.68 |
4
0.16 |
152
335.1 |
| 293/600EM | 600
23.622 |
900
35.4331 |
180
7.0946 |
840
33.07 |
720
28.35 |
751
29.57 |
780
30.71 |
127.3
5.01 |
65
2.56 |
89
3.5 |
335
13.19 |
6
0.24 |
361.1
796.2 |
| 294/600EM | 600
23.622 |
1030
40.5512 |
258
10.1575 |
922
36.3 |
744
29.29 |
805
31.69 |
847.1
33.35 |
186
7.32 |
107
4.21 |
134
5.28 |
351
13.82 |
10
0.39 |
822.3
1814.1 |
| 292/630EM | 630
24.803 |
850
33.4646 |
132
5.1968 |
796
31.34 |
712
28.03 |
759
29.88 |
738
29.06 |
90.3
3.56 |
43.9
1.73 |
71.5
2.82 |
338
13.31 |
5
0.2 |
195
430 |
| 294/630EM | 630
24.803 |
1090
42.9134 |
280
11.0236 |
975
38.39 |
780
30.71 |
849
33.43 |
893.1
35.16 |
203.1
8 |
114.2
4.5 |
146
5.75 |
367
14.45 |
10
0.39 |
1011.5
2230.1 |
| 292/670EM | 670
26.378 |
900
35.4331 |
140
5.5118 |
865
34.06 |
773
30.43 |
792
31.18 |
813
32.01 |
89.5
3.52 |
44
1.73 |
73
2.87 |
363
14.29 |
5
0.2 |
218.5
481.8 |
