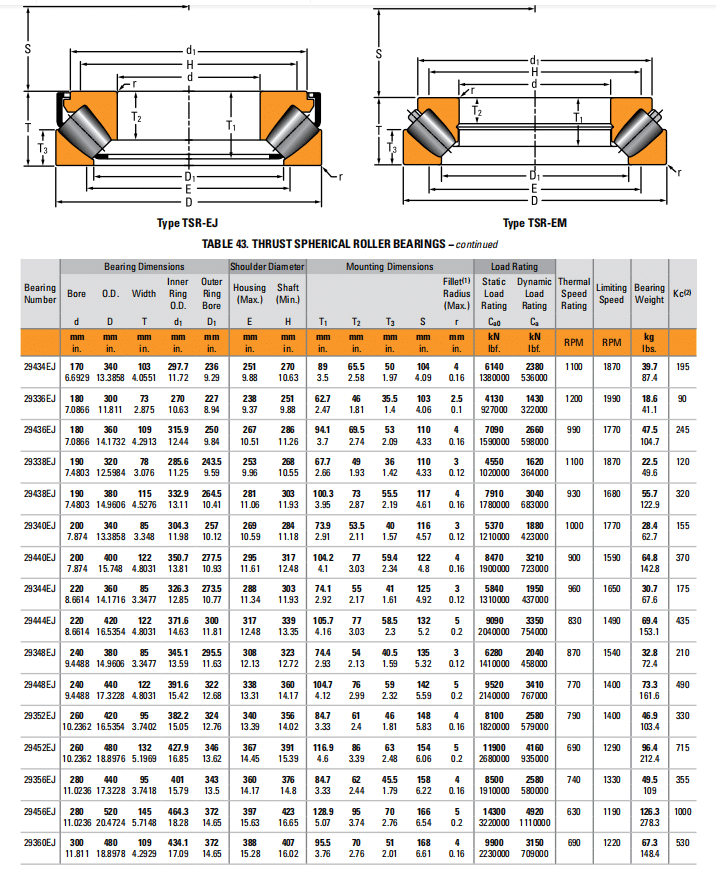

Timken Bearing
| Bearing Number |
Bore d |
Bearing Dimensions Inner |
Outer Ring Bore D1 |
Shoulder Diameter
Housing Shaft (Max.) (Min.) E H |
T1 |
Mounting Dimensions
T2 T3 S |
Fillet(1)
Radius (Max.) r |
Bearing Weight |
|||||
| O.D.
D |
Width
T |
Ring
O.D. 1 |
|||||||||||
| mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
kg
lbs. |
|
| 29434EJ | 170
6.6929 |
340
13.3858 |
103
4.0551 |
297.7
11.72 |
236
9.29 |
251
9.88 |
270
10.63 |
89
3.5 |
65.5
2.58 |
50
1.97 |
104
4.09 |
4
0.16 |
39.7
87.4 |
| 29336EJ | 180
7.0866 |
300
11.811 |
73
2.875 |
270
10.63 |
227
8.94 |
238
9.37 |
251
9.88 |
62.7
2.47 |
46
1.81 |
35.5
1.4 |
103
4.06 |
2.5
0.1 |
18.6
41.1 |
| 29436EJ | 180
7.0866 |
360
14.1732 |
109
4.2913 |
315.9
12.44 |
250
9.84 |
267
10.51 |
286
11.26 |
94.1
3.7 |
69.5
2.74 |
53
2.09 |
110
4.33 |
4
0.16 |
47.5
104.7 |
| 29338EJ | 190
7.4803 |
320
12.5984 |
78
3.076 |
285.6
11.25 |
243.5
9.59 |
253
9.96 |
268
10.55 |
67.7
2.66 |
49
1.93 |
36
1.42 |
110
4.33 |
3
0.12 |
22.5
49.6 |
| 29438EJ | 190
7.4803 |
380
14.9606 |
115
4.5276 |
332.9
13.11 |
264.5
10.41 |
281
11.06 |
303
11.93 |
100.3
3.95 |
73
2.87 |
55.5
2.19 |
117
4.61 |
4
0.16 |
55.7
122.9 |
| 29340EJ | 200
7.874 |
340
13.3858 |
85
3.348 |
304.3
11.98 |
257
10.12 |
269
10.59 |
284
11.18 |
73.9
2.91 |
53.5
2.11 |
40
1.57 |
116
4.57 |
3
0.12 |
28.4
62.7 |
| 29440EJ | 200
7.874 |
400
15.748 |
122
4.8031 |
350.7
13.81 |
277.5
10.93 |
295
11.61 |
317
12.48 |
104.2
4.1 |
77
3.03 |
59.4
2.34 |
122
4.8 |
4
0.16 |
64.8
142.8 |
| 29344EJ | 220
8.6614 |
360
14.1716 |
85
3.3477 |
326.3
12.85 |
273.5
10.77 |
288
11.34 |
303
11.93 |
74.1
2.92 |
55
2.17 |
41
1.61 |
125
4.92 |
3
0.12 |
30.7
67.6 |
| 29444EJ | 220
8.6614 |
420
16.5354 |
122
4.8031 |
371.6
14.63 |
300
11.81 |
317
12.48 |
339
13.35 |
105.7
4.16 |
77
3.03 |
58.5
2.3 |
132
5.2 |
5
0.2 |
69.4
153.1 |
| 29348EJ | 240
9.4488 |
380
14.9606 |
85
3.3477 |
345.1
13.59 |
295.5
11.63 |
308
12.13 |
323
12.72 |
74.4
2.93 |
54
2.13 |
40.5
1.59 |
135
5.32 |
3
0.12 |
32.8
72.4 |
| 29448EJ | 240
9.4488 |
440
17.3228 |
122
4.8031 |
391.6
15.42 |
322
12.68 |
338
13.31 |
360
14.17 |
104.7
4.12 |
76
2.99 |
59
2.32 |
142
5.59 |
5
0.2 |
73.3
161.6 |
| 29352EJ | 260
10.2362 |
420
16.5354 |
95
3.7402 |
382.2
15.05 |
324
12.76 |
340
13.39 |
356
14.02 |
84.7
3.33 |
61
2.4 |
46
1.81 |
148
5.83 |
4
0.16 |
46.9
103.4 |
| 29452EJ | 260
10.2362 |
480
18.8976 |
132
5.1969 |
427.9
16.85 |
346
13.62 |
367
14.45 |
391
15.39 |
116.9
4.6 |
86
3.39 |
63
2.48 |
154
6.06 |
5
0.2 |
96.4
212.4 |
| 29356EJ | 280
11.0236 |
440
17.3228 |
95
3.7418 |
401
15.79 |
343
13.5 |
360
14.17 |
376
14.8 |
84.7
3.33 |
62
2.44 |
45.5
1.79 |
158
6.22 |
4
0.16 |
49.5
109 |
| 29456EJ | 280
11.0236 |
520
20.4724 |
145
5.7148 |
464.3
18.28 |
372
14.65 |
397
15.63 |
423
16.65 |
128.9
5.07 |
95
3.74 |
70
2.76 |
166
6.54 |
5
0.2 |
126.3
278.3 |
| 29360EJ | 300
11.811 |
480
18.8978 |
109
4.2929 |
434.1
17.09 |
372
14.65 |
388
15.28 |
407
16.02 |
95.5
3.76 |
70
2.76 |
51
2.01 |
168
6.61 |
4
0.16 |
67.3
148.4 |
