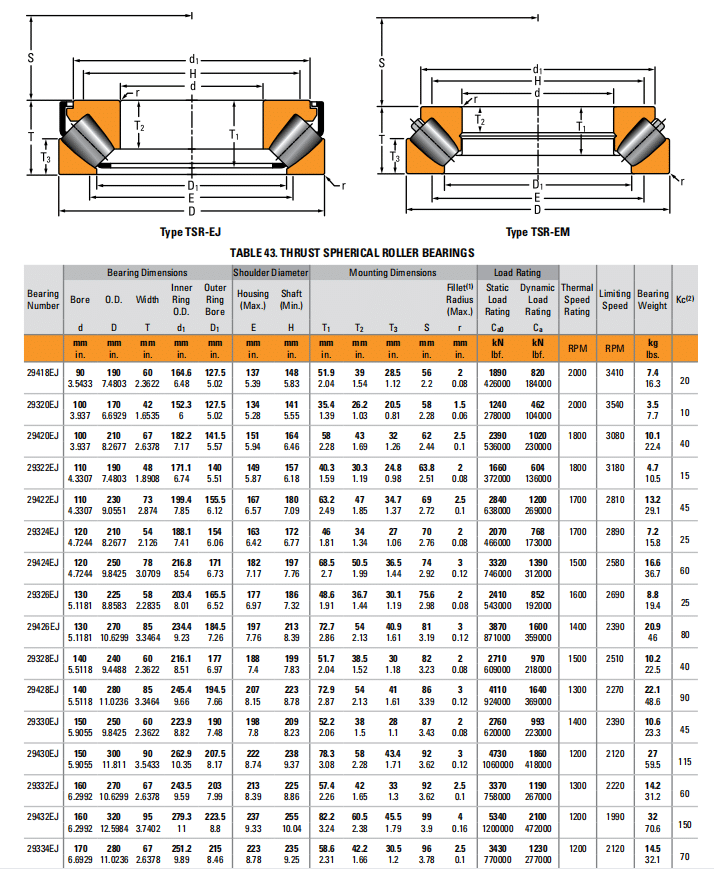

Timken Bearing
| Bearing Number |
Bore d |
Bearing Dimensions Inner |
Outer Ring Bore D1 |
Shoulder Diameter
Housing Shaft (Max.) (Min.) E H |
T1 |
Mounting Dimensions
T2 T3 S |
Fillet(1)
Radius (Max.) r |
Bearing Weight |
|||||
| O.D.
D |
Width
T |
Ring
O.D. 1 |
|||||||||||
| mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
kg
lbs. |
|
| 29418EJ | 90
3.5433 |
190
7.4803 |
60
2.3622 |
164.6
6.48 |
127.5
5.02 |
137
5.39 |
148
5.83 |
51.9
2.04 |
39
1.54 |
28.5
1.12 |
56
2.2 |
2
0.08 |
7.4
16.3 |
| 29320EJ | 100
3.937 |
170
6.6929 |
42
1.6535 |
152.3
6 |
127.5
5.02 |
134
5.28 |
141
5.55 |
35.4
1.39 |
26.2
1.03 |
20.5
0.81 |
58
2.28 |
1.5
0.06 |
3.5
7.7 |
| 29420EJ | 100
3.937 |
210
8.2677 |
67
2.6378 |
182.2
7.17 |
141.5
5.57 |
151
5.94 |
164
6.46 |
58
2.28 |
43
1.69 |
32
1.26 |
62
2.44 |
2.5
0.1 |
10.1
22.4 |
| 29322EJ | 110
4.3307 |
190
7.4803 |
48
1.8908 |
171.1
6.74 |
140
5.51 |
149
5.87 |
157
6.18 |
40.3
1.59 |
30.3
1.19 |
24.8
0.98 |
63.8
2.51 |
2
0.08 |
4.7
10.5 |
| 29422EJ | 110
4.3307 |
230
9.0551 |
73
2.874 |
199.4
7.85 |
155.5
6.12 |
167
6.57 |
180
7.09 |
63.2
2.49 |
47
1.85 |
34.7
1.37 |
69
2.72 |
2.5
0.1 |
13.2
29.1 |
| 29324EJ | 120
4.7244 |
210
8.2677 |
54
2.126 |
188.1
7.41 |
154
6.06 |
163
6.42 |
172
6.77 |
46
1.81 |
34
1.34 |
27
1.06 |
70
2.76 |
2
0.08 |
7.2
15.8 |
| 29424EJ | 120
4.7244 |
250
9.8425 |
78
3.0709 |
216.8
8.54 |
171
6.73 |
182
7.17 |
197
7.76 |
68.5
2.7 |
50.5
1.99 |
36.5
1.44 |
74
2.92 |
3
0.12 |
16.6
36.7 |
| 29326EJ | 130
5.1181 |
225
8.8583 |
58
2.2835 |
203.4
8.01 |
165.5
6.52 |
177
6.97 |
186
7.32 |
48.6
1.91 |
36.7
1.44 |
30.1
1.19 |
75.6
2.98 |
2
0.08 |
8.8
19.4 |
| 29426EJ | 130
5.1181 |
270
10.6299 |
85
3.3464 |
234.4
9.23 |
184.5
7.26 |
197
7.76 |
213
8.39 |
72.7
2.86 |
54
2.13 |
40.9
1.61 |
81
3.19 |
3
0.12 |
20.9
46 |
| 29328EJ | 140
5.5118 |
240
9.4488 |
60
2.3622 |
216.1
8.51 |
177
6.97 |
188
7.4 |
199
7.83 |
51.7
2.04 |
38.5
1.52 |
30
1.18 |
82
3.23 |
2
0.08 |
10.2
22.5 |
| 29428EJ | 140
5.5118 |
280
11.0236 |
85
3.3464 |
245.4
9.66 |
194.5
7.66 |
207
8.15 |
223
8.78 |
72.9
2.87 |
54
2.13 |
41
1.61 |
86
3.39 |
3
0.12 |
22.1
48.6 |
| 29330EJ | 150
5.9055 |
250
9.8425 |
60
2.3622 |
223.9
8.82 |
190
7.48 |
198
7.8 |
209
8.23 |
52.2
2.06 |
38
1.5 |
28
1.1 |
87
3.43 |
2
0.08 |
10.6
23.3 |
| 29430EJ | 150
5.9055 |
300
11.811 |
90
3.5433 |
262.9
10.35 |
207.5
8.17 |
222
8.74 |
238
9.37 |
78.3
3.08 |
58
2.28 |
43.4
1.71 |
92
3.62 |
3
0.12 |
27
59.5 |
| 29332EJ | 160
6.2992 |
270
10.6299 |
67
2.6378 |
243.5
9.59 |
203
7.99 |
213
8.39 |
225
8.86 |
57.4
2.26 |
42
1.65 |
33
1.3 |
92
3.62 |
2.5
0.1 |
14.2
31.2 |
| 29432EJ | 160
6.2992 |
320
12.5984 |
95
3.7402 |
279.3
11 |
223.5
8.8 |
237
9.33 |
255
10.04 |
82.2
3.24 |
60.5
2.38 |
45.5
1.79 |
99
3.9 |
4
0.16 |
32
70.6 |
| 29334EJ | 170
6.6929 |
280
11.0236 |
67
2.6378 |
251.2
9.89 |
215
8.46 |
223
8.78 |
235
9.25 |
58.6
2.31 |
42.2
1.66 |
30.5
1.2 |
96
3.78 |
2.5
0.1 |
14.5
32.1 |
