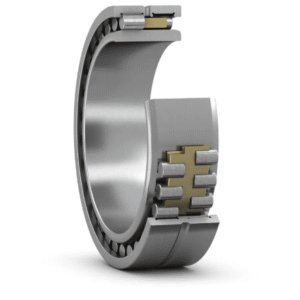

SKF Double row cylindrical roller bearings
| Designation | Principal dimensions | Basic load ratings | Speed ratings | Design variant/feature | |||||
|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | Reference speed | Limiting speed | ||||||
|
|
d[mm]
|
D[mm]
|
B[mm]
|
C[mm]
|
C[kN]
|
C0[kN]
|
[r/min]
|
[r/min]
|
|
| 314391 | 420 | 620 | 200 | 3 470 | 7 800 | 700 | 1 100 | NNU.3/C4W33WI | |
| 314419 | 500 | 720 | 218 | 4 730 | 10 800 | 600 | 850 | NNU.3/C3W33WI | |
| 314420 | 750 | 1 000 | 250 | 6 160 | 16 600 | 380 | 560 | NNU.3/C4W33WI | |
| 314982 | 420 | 600 | 220 | 3 580 | 8 800 | 750 | 1 100 | NNU.2/C4W33 | |
| 314987 B | 400 | 560 | 205 | 3 140 | 7 800 | 800 | 1 200 | NNU.4/C4W33WI | |
| 314987 C | 400 | 560 | 205 | 3 140 | 7 800 | 800 | 1 200 | NNU.4/C4W33WI | |
| 315583 C | 320 | 480 | 175 | 2 460 | 5 400 | 950 | 1 400 | NNU.4/C3W33 | |
| 315976 B | 280 | 470 | 200 | 2 700 | 5 100 | 1 000 | 1 500 | NNU/C3W33 | |
| 316019 | 410 | 600 | 220 | 3 800 | 8 650 | 750 | 1 100 | NNU.4/C4W33WI | |
| 316077 A | 440 | 620 | 225 | 3 910 | 9 800 | 700 | 1 000 | NNU.4/C4W33WI | |
| 316115 | 550 | 800 | 260 | 5 830 | 13 400 | 530 | 750 | NNU.3/C3W33 | |
| 316189 | 480 | 700 | 260 | 5 390 | 12 500 | 600 | 900 | NNU.3/C3W33 | |
| 316739 A | 460 | 650 | 235 | 4 400 | 11 200 | 670 | 1 000 | NNU.4/C4W33WI | |
