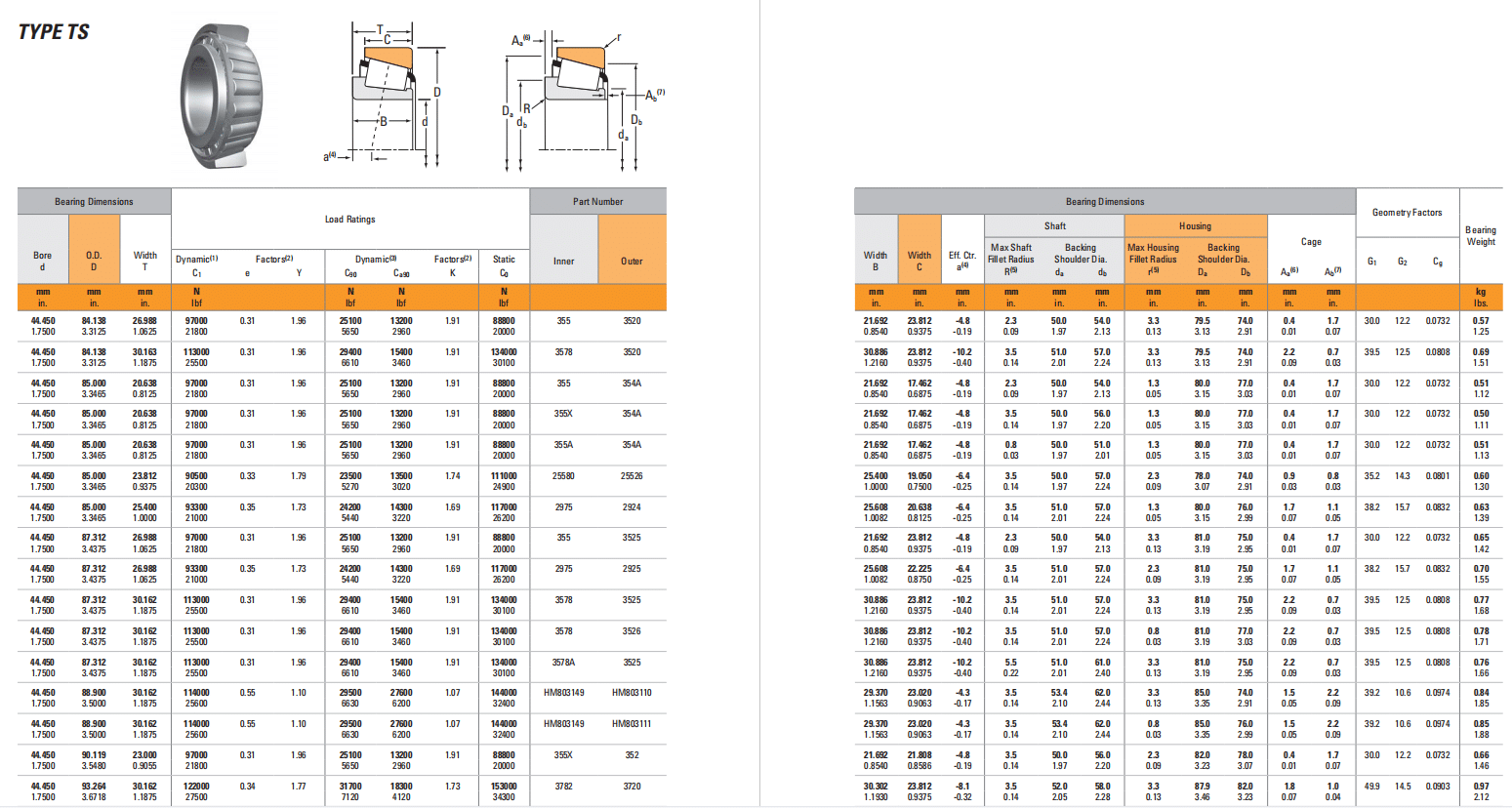

Timken Bearing
Bearing Dimensions |
Load Ratings |
Part Number | |||||||||
Bore d |
O.D. D |
Width T |
Inner |
Outer |
|||||||
Dynamic(1) Factors(2)
C1 e Y |
Dynamic(3) Factors(2)
C90 Ca90 K |
Static
C0 |
|||||||||
mm
in. |
mm
in. |
mm
in. |
N
lbf |
N
lbf |
N
lbf |
N
lbf |
|||||
44.450
1.7500 |
84.138
3.3125 |
26.988
1.0625 |
97000
21800 |
0.31 | 1.96 | 25100
5650 |
13200
2960 |
1.91 | 88800
20000 |
355 | 3520 |
44.450
1.7500 |
84.138
3.3125 |
30.163
1.1875 |
113000
25500 |
0.31 | 1.96 | 29400
6610 |
15400
3460 |
1.91 | 134000
30100 |
3578 | 3520 |
44.450
1.7500 |
85.000
3.3465 |
20.638
0.8125 |
97000
21800 |
0.31 | 1.96 | 25100
5650 |
13200
2960 |
1.91 | 88800
20000 |
355 354A | |
44.450
1.7500 |
85.000
3.3465 |
20.638
0.8125 |
97000
21800 |
0.31 | 1.96 | 25100
5650 |
13200
2960 |
1.91 | 88800
20000 |
355X 354A | |
44.450
1.7500 |
85.000
3.3465 |
20.638
0.8125 |
97000
21800 |
0.31 | 1.96 | 25100
5650 |
13200
2960 |
1.91 | 88800
20000 |
355A | 354A |
44.450
1.7500 |
85.000
3.3465 |
23.812
0.9375 |
90500
20300 |
0.33 | 1.79 | 23500
5270 |
13500
3020 |
1.74 | 111000
24900 |
25580 | 25526 |
44.450
1.7500 |
85.000
3.3465 |
25.400
1.0000 |
93300
21000 |
0.35 | 1.73 | 24200
5440 |
14300
3220 |
1.69 | 117000
26200 |
2975 | 2924 |
44.450
1.7500 |
87.312
3.4375 |
26.988
1.0625 |
97000
21800 |
0.31 | 1.96 | 25100
5650 |
13200
2960 |
1.91 | 88800
20000 |
355 | 3525 |
44.450
1.7500 |
87.312
3.4375 |
26.988
1.0625 |
93300
21000 |
0.35 | 1.73 | 24200
5440 |
14300
3220 |
1.69 | 117000
26200 |
2975 | 2925 |
44.450
1.7500 |
87.312
3.4375 |
30.162
1.1875 |
113000
25500 |
0.31 | 1.96 | 29400
6610 |
15400
3460 |
1.91 | 134000
30100 |
3578 | 3525 |
44.450
1.7500 |
87.312
3.4375 |
30.162
1.1875 |
113000
25500 |
0.31 | 1.96 | 29400
6610 |
15400
3460 |
1.91 | 134000
30100 |
3578 | 3526 |
44.450
1.7500 |
87.312
3.4375 |
30.162
1.1875 |
113000
25500 |
0.31 | 1.96 | 29400
6610 |
15400
3460 |
1.91 | 134000
30100 |
3578A 3525 | |
44.450
1.7500 |
88.900
3.5000 |
30.162
1.1875 |
114000
25600 |
0.55 | 1.10 | 29500
6630 |
27600
6200 |
1.07 | 144000
32400 |
HM803149 HM803110 | |
44.450
1.7500 |
88.900
3.5000 |
30.162
1.1875 |
114000
25600 |
0.55 | 1.10 | 29500
6630 |
27600
6200 |
1.07 | 144000
32400 |
HM803149 HM803111 | |
44.450
1.7500 |
90.119
3.5480 |
23.000
0.9055 |
97000
21800 |
0.31 | 1.96 | 25100
5650 |
13200
2960 |
1.91 | 88800
20000 |
355X | 352 |
44.450
1.7500 |
93.264
3.6718 |
30.162
1.1875 |
122000
27500 |
0.34 | 1.77 | 31700
7120 |
18300
4120 |
1.73 | 153000
34300 |
3782 | 3720 |
44.450
1.7500 |
93.662
3.6875 |
31.750
1.2500 |
136000
30500 |
0.36 | 1.67 | 35200
7900 |
21700
4870 |
1.62 | 156000
35000 |
49175 | 49368 |
