51340-MP FAG ball bearings

51340-MP FAG ball bearings

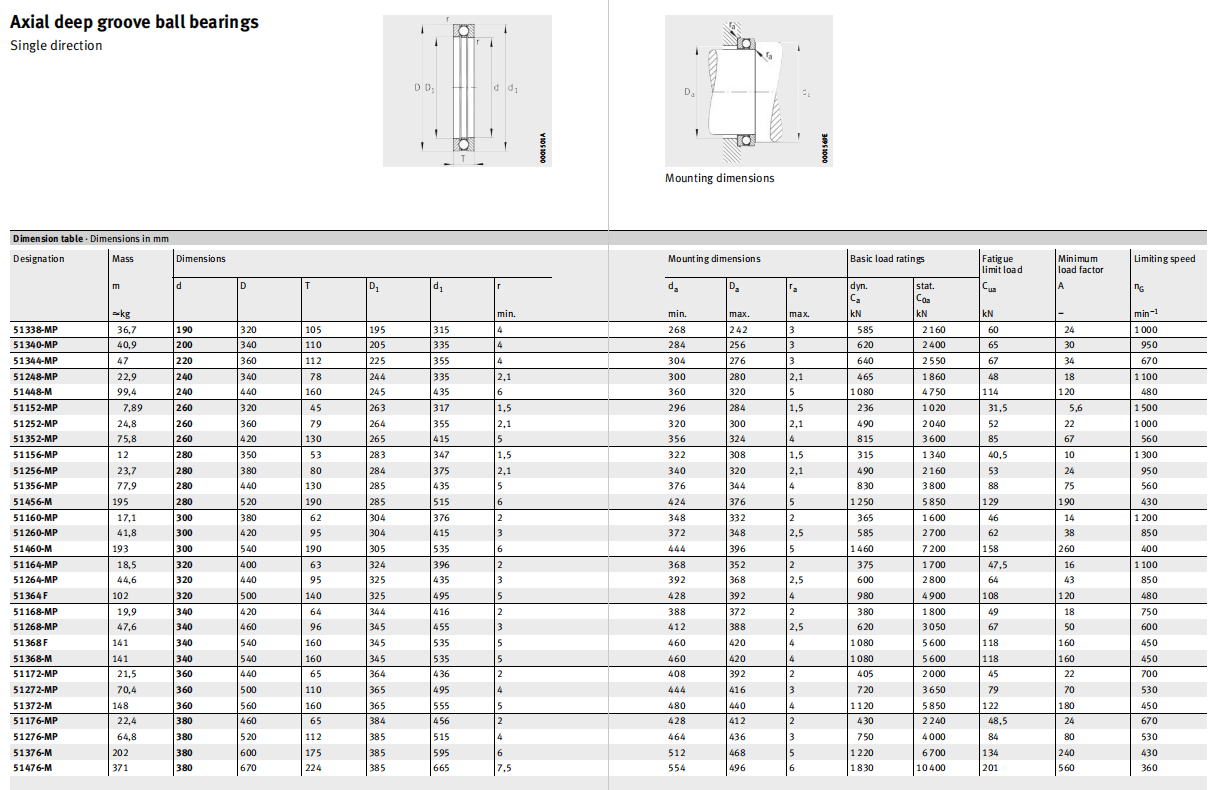

Axial deep groove ball bearings

 FAG Axial deep groove ball bearings



Designation Mass

m

kg

Dimensions
d                    D                   T                    D1                      d1 r

min.

51338-MP 36,7 190 320 105 195 315 4
51340-MP 40,9 200 340 110 205 335 4
51344-MP 47 220 360 112 225 355 4
51248-MP 22,9 240 340 78 244 335 2,1
51448-M 99,4 240 440 160 245 435 6
51152-MP 7,89 260 320 45 263 317 1,5
51252-MP 24,8 260 360 79 264 355 2,1
51352-MP 75,8 260 420 130 265 415 5
51156-MP 12 280 350 53 283 347 1,5
51256-MP 23,7 280 380 80 284 375 2,1
51356-MP 77,9 280 440 130 285 435 5
51456-M 195 280 520 190 285 515 6
51160-MP 17,1 300 380 62 304 376 2
51260-MP 41,8 300 420 95 304 415 3
51460-M 193 300 540 190 305 535 6
51164-MP 18,5 320 400 63 324 396 2
51264-MP 44,6 320 440 95 325 435 3
51364 F 102 320 500 140 325 495 5
51168-MP 19,9 340 420 64 344 416 2
51268-MP 47,6 340 460 96 345 455 3
51368 F 141 340 540 160 345 535 5
51368-M 141 340 540 160 345 535 5
51172-MP 21,5 360 440 65 364 436 2
51272-MP 70,4 360 500 110 365 495 4
51372-M 148 360 560 160 365 555 5
51176-MP 22,4 380 460 65 384 456 2
51276-MP 64,8 380 520 112 385 515 4
51376-M 202 380 600 175 385 595 6
51476-M 371 380 670 224 385 665 7,5



You can get competitive price of NTN bearing from our company. More information, please contact us  E-mail:sale@adyrbearing.com

ADYR Bearing Co.,Limited. has been engaged in bearing industry for many years, we provide a wide selections of brands including Timken bearing, INA bearing, FAG bearing, NTN bearings, SKF bearings, deep groove ball bearings, cylindrical roller bearings, tapered roller bearings, self-aligning ball bearings,thrust ball bearings, rolling mill bearings, spherical roller thrust bearings, spherical bearings, adapter sleeves, withdrawal sleeves, lock nut, lock washer,locking device, etc.



We can provide bearing and non-standard bearings, linear bearings, automotive bearings, large bearings, railway bearings, spherical plain bearings, high temperature, super-precision bearings, as well as some rare types customized to your need.

Our bearings are exported to countries and regions in Europe (the UK, France, Italy, Germany), North America (USA, Canda),

Middle East and Southeast Asia.Our goal is to exceed our customers’ expectation in providing quality products and continue to improve the services we
provide on a timely manner.Please view the products at our website that we can supply. You can also contact our sales representative to request a
price quotation on the products that you are looking for that may not been shown on our website.

Packaging & Shipping
1.industrial packing+industrial cartons+pallets
2.single brand box+brand cartons+pallets
3.follow customer’s requests
A.Plastic Tubes or Single Boxes ( Usually 10pcs in one plastic tube for steel bearings);
B.Cartons ( No more than 30kg for one carton );
C. Pallet ( Usually more than 400kg totally will use pallet )
D. Delivery time :7-35 days ( by sea or by air )
Generally,We will choose the most suitable packing method for products. If you have any special requirements for packing, pleasecontact us in advance.
 After Sales Service
In order to meet the increasing market demand, and better serve the customers, we has built a professional team composed of sales engineers to provide perfect pre-sales and after-sales services.We provide consulting services for maintenance, procurement and design staff concerning the basic knowledge, selection, installation and removal, lubrication, maintenance and equipment management of imported bearings.All these services are mean to reduce the installation errors, form good work and safety habits and improve the efficiency of maintenance personnel, thus achieving the best use effect and the maximum bearing life.We also help users analyze the failure of the bearing, confirm the causes, provide solutions for this issue and give suggestions on precautionary measures.
FAQ
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibilities when defective products were found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we also customize OEM box and packing as your requirements.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users.
Q:How to place order?
A: 1. Email us the model, brand and quantity,shipping way of bearings and we will quote our best price for you;
2. Proforma Invoice made and sent to you as the price agreed by both parts;
3. Deposit Payment after confirming the PI and we arrange production;
4. Balance paid before shipment or after copy of Bill of Loading.
Contact with us now!
