545112/545139 Timken Bearing

545112/545139 Timken Bearing

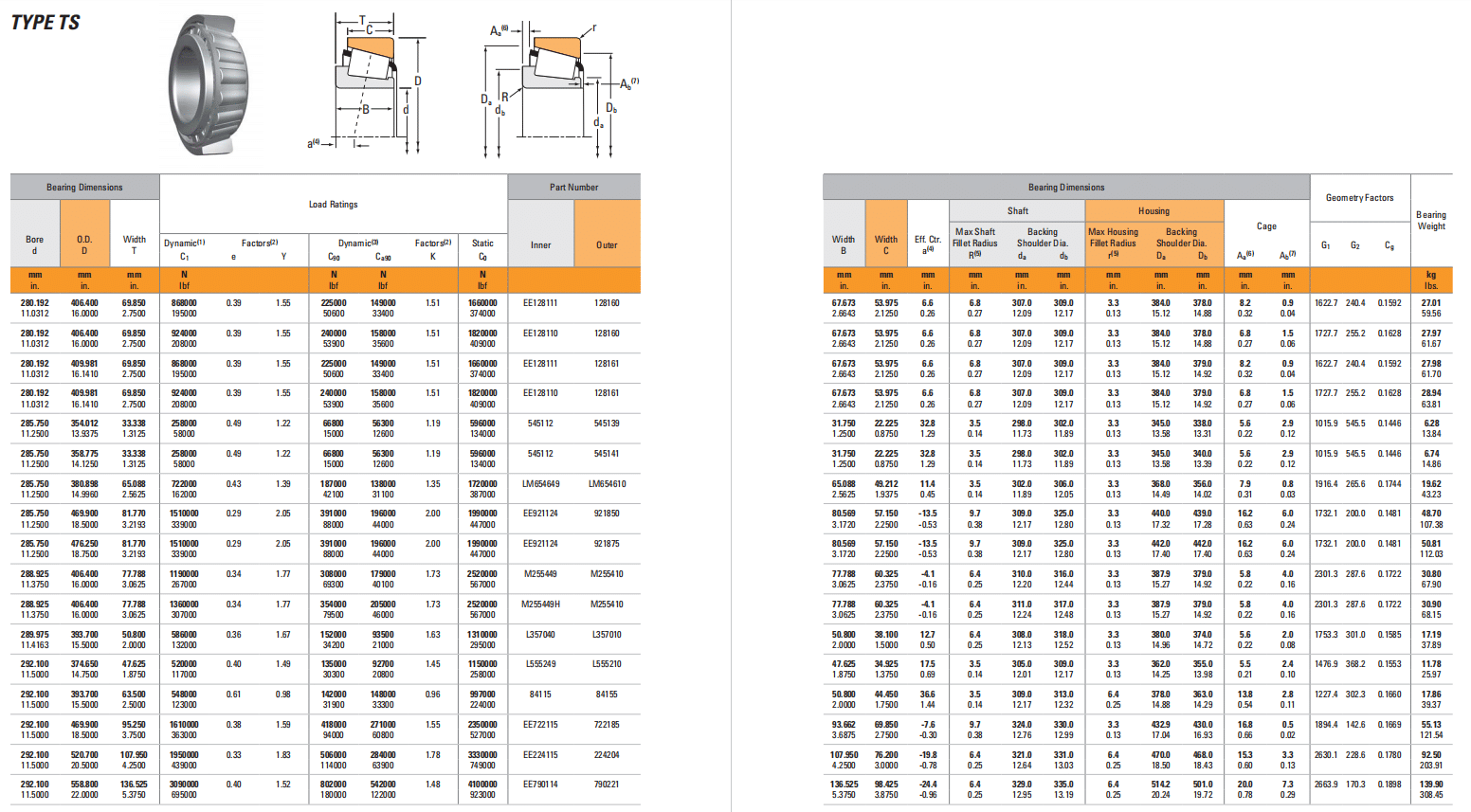

TAPERED ROLLER BEARINGS

Timken Bearing



Bearing Dimensions

Load Ratings

Part Number




Bore

d





O.D.

D





Width

T





Inner





Outer

      Dynamic(1)                   Factors(2)

C1                      e                 Y

Dynamic(3)                   Factors(2)

C90                   Ca90                    K

Static

C0


mm

in.

mm

in.

mm

in.

N

lbf

N

lbf

N

lbf

  N

lbf


280.192

11.0312

406.400

16.0000

69.850

2.7500

868000

195000

0.39 1.55 225000

50600

149000

33400

1.51 1660000

374000

EE128111              128160
280.192

11.0312

406.400

16.0000

69.850

2.7500

924000

208000

0.39 1.55 240000

53900

158000

35600

1.51 1820000

409000

EE128110              128160
280.192

11.0312

409.981

16.1410

69.850

2.7500

868000

195000

0.39 1.55 225000

50600

149000

33400

1.51 1660000

374000

EE128111              128161
280.192

11.0312

409.981

16.1410

69.850

2.7500

924000

208000

0.39 1.55 240000

53900

158000

35600

1.51 1820000

409000

EE128110              128161
285.750

11.2500

354.012

13.9375

33.338

1.3125

258000

58000

0.49 1.22 66800

15000

56300

12600

1.19 596000

134000

545112 545139
285.750

11.2500

358.775

14.1250

33.338

1.3125

258000

58000

0.49 1.22 66800

15000

56300

12600

1.19 596000

134000

545112 545141
285.750

11.2500

380.898

14.9960

65.088

2.5625

722000

162000

0.43 1.39 187000

42100

138000

31100

1.35 1720000

387000

LM654649           LM654610
285.750

11.2500

469.900

18.5000

81.770

3.2193

1510000

339000

0.29 2.05 391000

88000

196000

44000

2.00 1990000

447000

EE921124             921850
285.750

11.2500

476.250

18.7500

81.770

3.2193

1510000

339000

0.29 2.05 391000

88000

196000

44000

2.00 1990000

447000

EE921124             921875
288.925

11.3750

406.400

16.0000

77.788

3.0625

1190000

267000

0.34 1.77 308000

69300

179000

40100

1.73 2520000

567000

M255449            M255410
288.925

11.3750

406.400

16.0000

77.788

3.0625

1360000

307000

0.34 1.77 354000

79500

205000

46000

1.73 2520000

567000

M255449H           M255410
289.975

11.4163

393.700

15.5000

50.800

2.0000

586000

132000

0.36 1.67 152000

34200

93500

21000

1.63 1310000

295000

L357040              L357010
292.100

11.5000

374.650

14.7500

47.625

1.8750

520000

117000

0.40 1.49 135000

30300

92700

20800

1.45 1150000

258000

L555249              L555210
292.100

11.5000

393.700

15.5000

63.500

2.5000

548000

123000

0.61 0.98 142000

31900

148000

33300

0.96 997000

224000

84115 84155
292.100

11.5000

469.900

18.5000

95.250

3.7500

1610000

363000

0.38 1.59 418000

94000

271000

60800

1.55 2350000

527000

EE722115             722185
292.100

11.5000

520.700

20.5000

107.950

4.2500

1950000

439000

0.33 1.83 506000

114000

284000

63900

1.78 3330000

749000

EE224115             224204
292.100

11.5000

558.800

22.0000

136.525

5.3750

3090000

695000

0.40 1.52 802000

180000

542000

122000

1.48 4100000

923000

EE790114             790221
