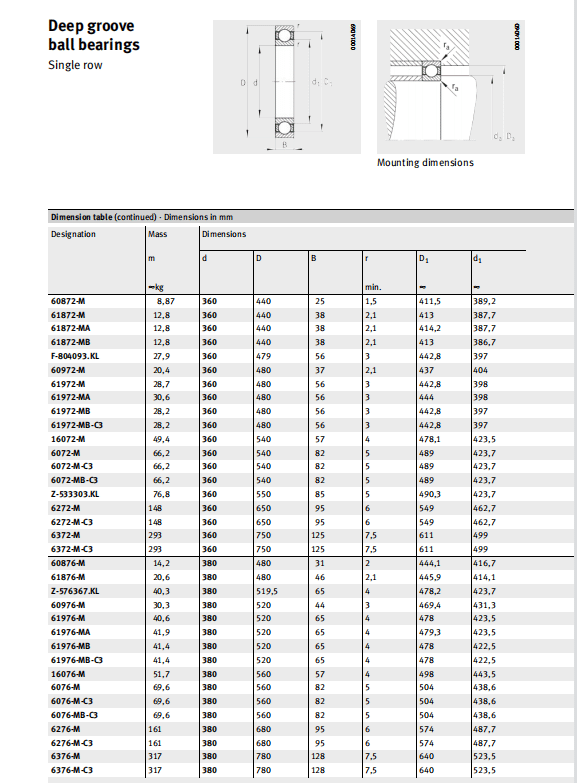

FAG Bearing



Designation	Mass m 必kg	Dimensions
		D                      B			r   min.	D1   必	1   必
60872-M	8,87	360	440	25	1,5	411,5	389,2
61872-M	12,8	360	440	38	2,1	413	387,7
61872-MA	12,8	360	440	38	2,1	414,2	387,7
61872-MB	12,8	360	440	38	2,1	413	386,7
F–804093.KL	27,9	360	479	56	3	442,8	397
60972-M	20,4	360	480	37	2,1	437	404
61972-M	28,7	360	480	56	3	442,8	398
61972-MA	30,6	360	480	56	3	444	398
61972-MB	28,2	360	480	56	3	442,8	397
61972-MB-C3	28,2	360	480	56	3	442,8	397
16072-M	49,4	360	540	57	4	478,1	423,5
6072-M	66,2	360	540	82	5	489	423,7
6072-M-C3	66,2	360	540	82	5	489	423,7
6072-MB-C3	66,2	360	540	82	5	489	423,7
Z-533303.KL	76,8	360	550	85	5	490,3	423,7
6272-M	148	360	650	95	6	549	462,7
6272-M-C3	148	360	650	95	6	549	462,7
6372-M	293	360	750	125	7,5	611	499
6372-M-C3	293	360	750	125	7,5	611	499
60876-M	14,2	380	480	31	2	444,1	416,7
61876-M	20,6	380	480	46	2,1	445,9	414,1
Z-576367.KL	40,3	380	519,5	65	4	478,2	423,7
60976-M	30,3	380	520	44	3	469,4	431,3
61976-M	40,6	380	520	65	4	478	423,5
61976-MA	41,9	380	520	65	4	479,3	423,5
61976-MB	41,4	380	520	65	4	478	422,5
61976-MB-C3	41,4	380	520	65	4	478	422,5
16076-M	51,7	380	560	57	4	498	443,5
6076-M	69,6	380	560	82	5	504	438,6
6076-M-C3	69,6	380	560	82	5	504	438,6
6076-MB-C3	69,6	380	560	82	5	504	438,6
6276-M	161	380	680	95	6	574	487,7
6276-M-C3	161	380	680	95	6	574	487,7
6376-M	317	380	780	128	7,5	640	523,5
6376-M-C3	317	380	780	128	7,5	640	523,5
