BC2B320075/VJ202 Four-row cylindrical roller bearings

SKF four-row cylindrical roller bearings are available in several designs:

  • With a cylindrical or tapered bore
  • Open or sealed

Four-row cylindrical roller bearings are used almost exclusively for the roll necks of rolling mill stands, calenders and roller presses. Because they are normally mounted with an interference fit on the roll neck, four-row cylindrical roller bearings are well suited for rolling mill applications where the rolling speed is high.

Because four-row cylindrical roller bearings can accommodate only radial loads, they are mounted together with deep groove or angular contact ball bearings, or with tapered roller bearings (either radial or thrust design) which accommodate the axial loads.

Get A Quote
Contact Us

SKF Four-row cylindrical roller bearings

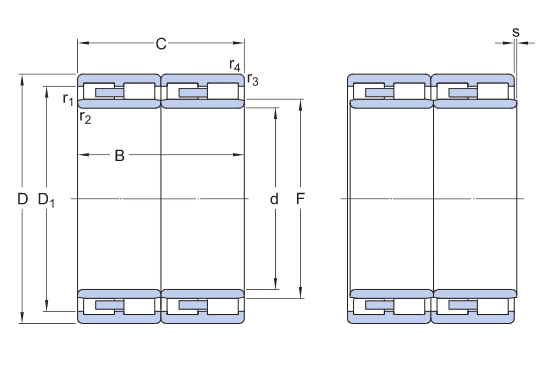

Designation Principal dimensions Basic load ratings Design variant/feature
dynamic static
d[mm] D[mm] B[mm] C[mm] C[kN] C0[kN]
BC2B 320075/VJ202   360   500   250   250   3 910   7 350   BC4.7/WO
  BC2B 322217/VJ202   360   500   250   250   4 400   8 500   BC4.13/WO
  BC2B 326196/HA1VJ202   487.98   637   350   350   6 440   15 300   BC4.15/W20WI
