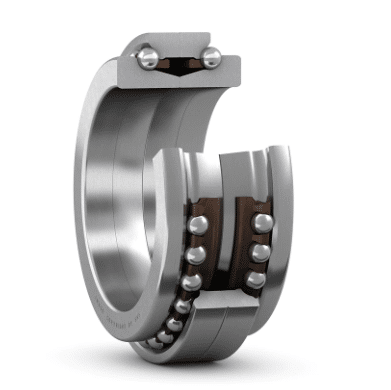

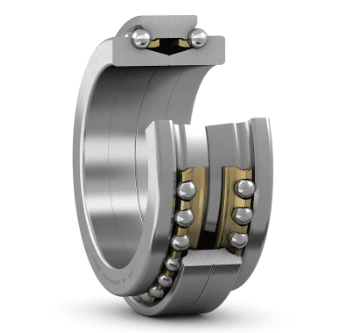

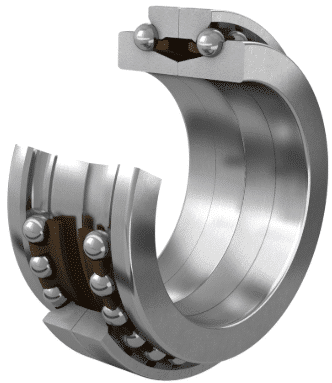

SKF Double direction angular contact thrust ball bearings
| Designation |

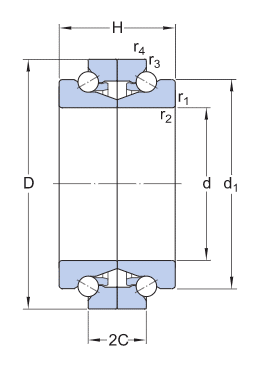

Principal dimensions |
Basic load ratings |
Attainable speeds |
|
|
dynamic |
static |
Grease lubrication |
Oil-air lubrication |
|
d[mm] |
D[mm] |
H[mm] |
C[kN] |
C0[kN] |
[r/min] |
[r/min] |
| BTW100CTN9/SP |
100 |
150 |
60 |
59.2 |
193 |
5 000 |
6 000 |
| BTW110CTN9/SP |
110 |
170 |
72 |
81.9 |
260 |
4 300 |
5 000 |
| BTW120CTN9/SP |
120 |
180 |
72 |
85.2 |
280 |
4 000 |
4 800 |
| BTW130CTN9/SP |
130 |
200 |
84 |
106 |
360 |
3 600 |
4 300 |
| BTW140CM/SP |
140 |
210 |
84 |
106 |
375 |
3 200 |
3 800 |
| BTW150CM/SP |
150 |
225 |
90 |
127 |
440 |
3 000 |
3 600 |
| BTW160CM/SP |
160 |
240 |
96 |
140 |
510 |
2 800 |
3 400 |
| BTW170CM/SP |
170 |
260 |
108 |
174 |
610 |
2 400 |
3 000 |
| BTW180CM/SP |
180 |
280 |
120 |
199 |
710 |
2 000 |
2 600 |
| BTW190CM/SP |
190 |
290 |
120 |
203 |
735 |
2 000 |
2 600 |
| BTW200CM/SP |
200 |
310 |
132 |
238 |
865 |
1 900 |
2 400 |
| BTW35CTN9/SP |
35 |
62 |
34 |
16.8 |
39 |
11 000 |
14 000 |
| BTW40CTN9/SP |
40 |
68 |
36 |
19.5 |
46.5 |
10 000 |
13 000 |
| BTW45CTN9/SP |
45 |
75 |
38 |
22.1 |
54 |
9 500 |
12 000 |
| BTW50CTN9/SP |
50 |
80 |
38 |
22.5 |
60 |
9 000 |
11 000 |
| BTW55CTN9/SP |
55 |
90 |
44 |
30.2 |
80 |
7 500 |
9 000 |
| BTW60CTN9/SP |
60 |
95 |
44 |
30.7 |
83 |
7 500 |
9 000 |
| BTW65CTN9/SP |
65 |
100 |
44 |
31.9 |
90 |
7 000 |
8 500 |
| BTW70CTN9/SP |
70 |
110 |
48 |
39 |
112 |
6 700 |
8 000 |
| BTW75CTN9/SP |
75 |
115 |
48 |
39.7 |
116 |
6 300 |
7 500 |
| BTW80CTN9/SP |
80 |
125 |
54 |
47.5 |
140 |
5 600 |
6 700 |
| BTW85CTN9/SP |
85 |
130 |
54 |
48.8 |
146 |
5 600 |
6 700 |
| BTW90CTN9/SP |
90 |
140 |
60 |
55.9 |
173 |
5 000 |
6 000 |
| BTW95CTN9/SP |
95 |
145 |
60 |
57.2 |
180 |
5 000 |
6 000 |
