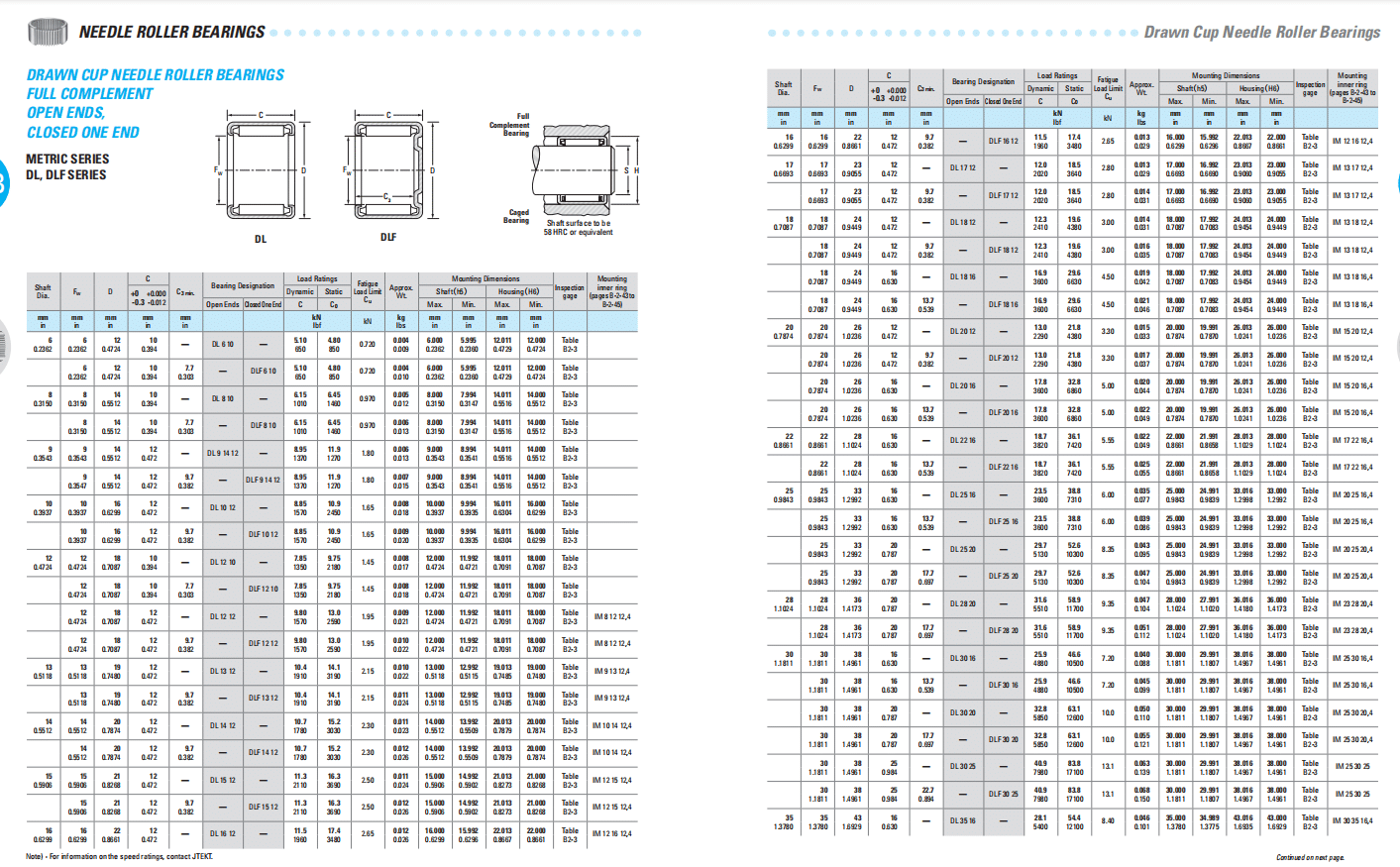

KOYO NEEDLE ROLLER BEARING
| Shaft
Dia. |
Fw | D | C | C3 min. | Bearing Designation | Load Ratings | Fatigue
Load Limit Cu |
Approx. Wt. | ||
| +0 +0.000 -0.3 -0.012 | Dynamic | Static | ||||||||
| Open Ends | Closed One End | C | C0 | |||||||
| mm
in |
mm
in |
mm
in |
mm
in |
mm
in |
kN
lbf |
kN | kg
lbs |
|||
| 35
1.3780 |
35
1.3780 |
43
1.6929 |
16
0.630 |
13.7
0.539 |
— | DLF 35 16 | 28.1
5400 |
54.4
12100 |
8.40 | 0.053
0.117 |
| 35
1.3780 |
43
1.6929 |
20
0.787 |
DL 35 20 | 35.7
6520 |
73.7
14600 |
11.7 | 0.057
0.126 |
|||
| 35
1.3780 |
43
1.6929 |
20
0.787 |
17.7
0.697 |
DLF 35 20 | 35.7
6520 |
73.7
14600 |
11.7 | 0.064
0.141 |
||
| 40
1.5748 |
40
1.5748 |
48
1.8898 |
16
0.630 |
DL 40 16 | 30.2
5960 |
62.2
13900 |
9.60 | 0.051
0.112 |
||
| 40
1.5748 |
48
1.8898 |
16
0.063 |
13.7
0.539 |
DLF 40 16 | 30.2
5960 |
62.2
13900 |
9.60 | 0.061
0.134 |
||
| 40
1.5748 |
48
1.8898 |
20
0.787 |
— | DL 40 20 | 38.3
8090 |
84.3
18900 |
13.4 | 0.064
0.141 |
||
| 40
1.5748 |
48
1.8898 |
20
0.787 |
17.7
0.697 |
— | DLF 40 20 | 38.3
8090 |
84.3
18900 |
13.4 | 0.074
0.163 |
|
| 44
1.7323 |
44
1.7323 |
52
2.0472 |
16
0.630 |
— | DL 44 16 | — | 31.7
5350 |
68.4
12800 |
10.6 | 0.056
0.123 |
| 44
1.7323 |
52
2.0472 |
16
0.630 |
13.7
0.539 |
— | DLF 44 16 | 31.7
5350 |
68.4
12800 |
10.6 | 0.066
0.146 |
|
| 47
1.8504 |
47
1.8504 |
55
2.1654 |
16
0.630 |
— | DL 47 16 | 32.8
5620 |
73.1
13700 |
11.3 | 0.060
0.132 |
|
| 47
1.8504 |
55
2.1654 |
16
0.630 |
13.7
0.539 |
DLF 47 16 | 32.8
5620 |
73.1
13700 |
11.3 | 0.071
0.157 |
||
| 50
1.9685 |
50
1.9685 |
58
2.2835 |
12
0.472 |
DL 50 12 | 24.1
4500 |
50.1
11200 |
7.60 | 0.047
0.104 |
||
| 50
1.9685 |
58
2.2835 |
12
0.472 |
9.7
0.382 |
DLF 50 12 | 24.1
4500 |
50.1
11200 |
7.60 | 0.061
0.134 |
||
| 50
1.9685 |
58
2.2835 |
18
0.709 |
DL 50 18 | 38.5
8210 |
91.6
20700 |
14.4 | 0.071
0.157 |
|||
| 50
1.9685 |
58
2.2835 |
18
0.709 |
15.7
0.618 |
— | DLF 50 18 | 38.5
8210 |
91.6
20700 |
14.4 | 0.085
0.187 |
|
| 50
1.9685 |
58
2.2835 |
20
0.787 |
— | DL 50 20 | — | 43.0
8320 |
105
20900 |
16.8 | 0.077
0.170 |
|
| 50
1.9685 |
58
2.2835 |
20
0.787 |
17.7
0.697 |
— | DLF 50 20 | 43.0
8320 |
105
20900 |
16.8 | 0.091
0.201 |
|
| 55
2.1654 |
55
2.1654 |
63
2.4803 |
20
0.787 |
— | DL 55 20 | 46.0
8880 |
115
22900 |
18.3 | 0.086
0.190 |
|
| 55
2.1654 |
63
2.4803 |
20
0.787 |
17.7
0.697 |
DLF 55 20 | 46.0
8880 |
115
22900 |
18.3 | 0.102
0.225 |
||
