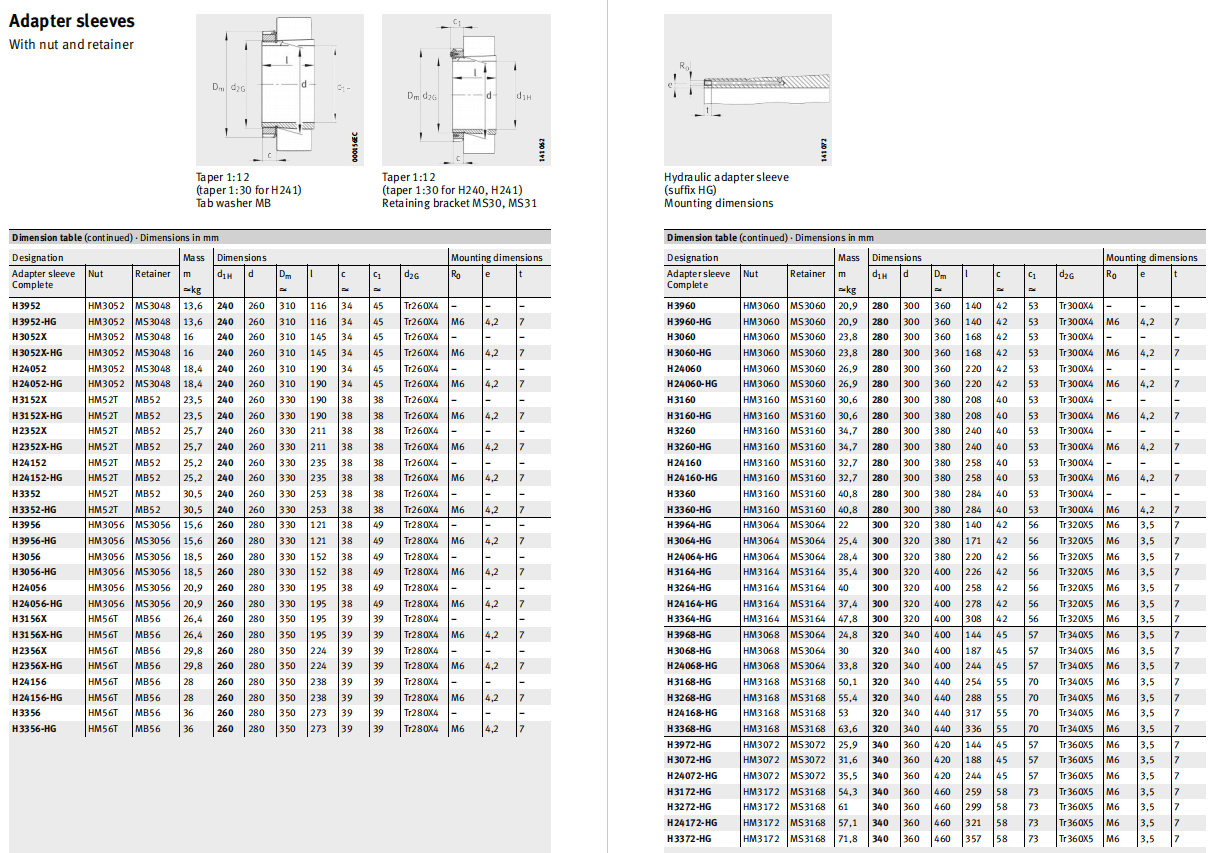

FAG Adapter sleeves
Designation | Mass
m kg |
Dimensions | Mounting dimensions | ||||||||||
Adapter sleeve Complete | Nut | Retainer | 1H | d | Dm
必 |
l | c
必 |
1
必 |
2G | R0 | e | t | |
H3952
H3952-HG H3052X H3052X-HG H24052 H24052-HG H3152X H3152X-HG H2352X H2352X-HG H24152 H24152-HG H3352 H3352-HG |
HM3052
HM3052 HM3052 HM3052 HM3052 HM3052 HM52T HM52T HM52T HM52T HM52T HM52T HM52T HM52T |
MS3048
MS3048 MS3048 MS3048 MS3048 MS3048 MB52 MB52 MB52 MB52 MB52 MB52 MB52 MB52 |
13,6
13,6 16 16 18,4 18,4 23,5 23,5 25,7 25,7 25,2 25,2 30,5 30,5 |
240
240 240 240 240 240 240 240 240 240 240 240 240 240 |
260
260 260 260 260 260 260 260 260 260 260 260 260 260 |
310
310 310 310 310 310 330 330 330 330 330 330 330 330 |
116
116 145 145 190 190 190 190 211 211 235 235 253 253 |
34
34 34 34 34 34 38 38 38 38 38 38 38 38 |
45
45 45 45 45 45 38 38 38 38 38 38 38 38 |
Tr260X4
Tr260X4 Tr260X4 Tr260X4 Tr260X4 Tr260X4 Tr260X4 Tr260X4 Tr260X4 Tr260X4 Tr260X4 Tr260X4 Tr260X4 Tr260X4 |
–
M6 – M6 – M6 – M6 – M6 – M6 – M6 |
–
4,2 – 4,2 – 4,2 – 4,2 – 4,2 – 4,2 – 4,2 |
–
7 – 7 – 7 – 7 – 7 – 7 – 7 |
H3956
H3956-HG H3056 H3056-HG H24056 H24056-HG H3156X H3156X-HG H2356X H2356X-HG H24156 H24156-HG H3356 H3356-HG |
HM3056
HM3056 HM3056 HM3056 HM3056 HM3056 HM56T HM56T HM56T HM56T HM56T HM56T HM56T HM56T |
MS3056
MS3056 MS3056 MS3056 MS3056 MS3056 MB56 MB56 MB56 MB56 MB56 MB56 MB56 MB56 |
15,6
15,6 18,5 18,5 20,9 20,9 26,4 26,4 29,8 29,8 28 28 36 36 |
260
260 260 260 260 260 260 260 260 260 260 260 260 260 |
280
280 280 280 280 280 280 280 280 280 280 280 280 280 |
330
330 330 330 330 330 350 350 350 350 350 350 350 350 |
121
121 152 152 195 195 195 195 224 224 238 238 273 273 |
38
38 38 38 38 38 39 39 39 39 39 39 39 39 |
49
49 49 49 49 49 39 39 39 39 39 39 39 39 |
Tr280X4
Tr280X4 Tr280X4 Tr280X4 Tr280X4 Tr280X4 Tr280X4 Tr280X4 Tr280X4 Tr280X4 Tr280X4 Tr280X4 Tr280X4 Tr280X4 |
–
M6 – M6 – M6 – M6 – M6 – M6 – M6 |
–
4,2 – 4,2 – 4,2 – 4,2 – 4,2 – 4,2 – 4,2 |
–
7 – 7 – 7 – 7 – 7 – 7 – 7 |
