L853049/L853011-B Timken Bearing

PRODUCT CATEGORIES

Products

L853049/L853011-B Timken Bearing

L853049/L853011-B Timken Bearing

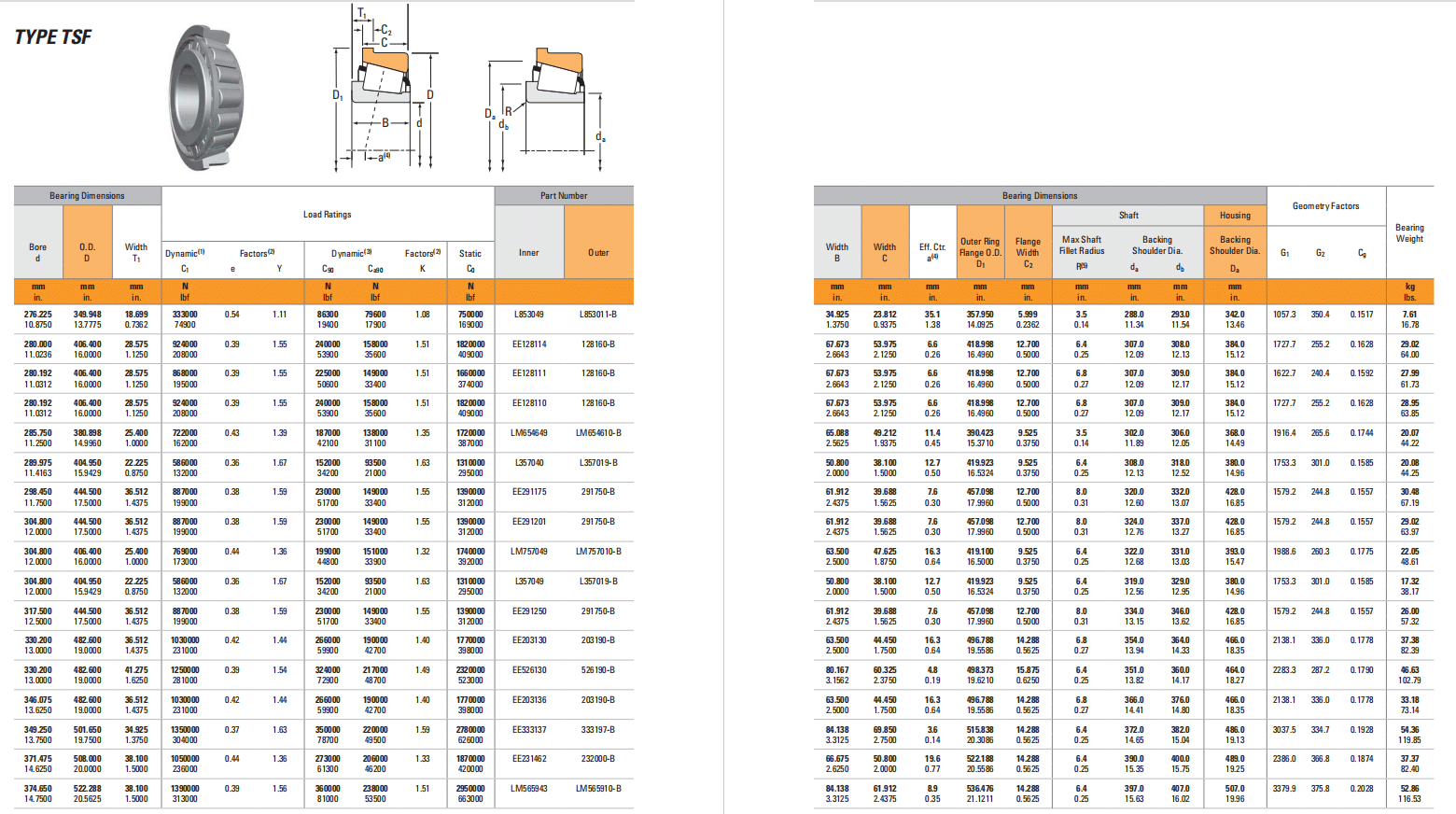

TAPERED ROLLER BEARINGS

Timken Bearing



Bearing Dimensions

Load Ratings

 Part Number

Bore

d

 O.D.

D

 Width

T1



Inner



Outer
      Dynamic(1)                  Factors(2)

C1                     e                Y

 Dynamic(3)                  Factors(2)

C90                  Ca90                    K

 Static

C0


mm

in.

 mm

in.

 mm

in.

 N

lbf

 N

lbf

 N

lbf

   N

lbf


276.225 349.948 18.699 333000 0.54 1.11 86300 79600 1.08 750000 L853049 L853011-B
10.8750 13.7775 0.7362 74900     19400 17900   169000
280.000 406.400 28.575 924000 0.39 1.55 240000 158000 1.51 1820000 EE128114 128160-B
11.0236 16.0000 1.1250 208000     53900 35600   409000
280.192 406.400 28.575 868000 0.39 1.55 225000 149000 1.51 1660000 EE128111 128160-B
11.0312 16.0000 1.1250 195000     50600 33400   374000
280.192 406.400 28.575 924000 0.39 1.55 240000 158000 1.51 1820000 EE128110 128160-B
11.0312 16.0000 1.1250 208000     53900 35600   409000
285.750 380.898 25.400 722000 0.43 1.39 187000 138000 1.35 1720000 LM654649 LM654610-B
11.2500 14.9960 1.0000 162000     42100 31100   387000
289.975 404.950 22.225 586000 0.36 1.67 152000 93500 1.63 1310000 L357040 L357019-B
11.4163 15.9429 0.8750 132000     34200 21000   295000
298.450 444.500 36.512 887000 0.38 1.59 230000 149000 1.55 1390000 EE291175 291750-B
11.7500 17.5000 1.4375 199000     51700 33400   312000
304.800 444.500 36.512 887000 0.38 1.59 230000 149000 1.55 1390000 EE291201 291750-B
12.0000 17.5000 1.4375 199000     51700 33400   312000
304.800 406.400 25.400 769000 0.44 1.36 199000 151000 1.32 1740000 LM757049 LM757010-B
12.0000 16.0000 1.0000 173000     44800 33900   392000
304.800 404.950 22.225 586000 0.36 1.67 152000 93500 1.63 1310000 L357049 L357019-B
12.0000 15.9429 0.8750 132000     34200 21000   295000
317.500 444.500 36.512 887000 0.38 1.59 230000 149000 1.55 1390000 EE291250 291750-B
12.5000 17.5000 1.4375 199000     51700 33400   312000
330.200 482.600 36.512 1030000 0.42 1.44 266000 190000 1.40 1770000 EE203130 203190-B
13.0000 19.0000 1.4375 231000     59900 42700   398000
330.200 482.600 41.275 1250000 0.39 1.54 324000 217000 1.49 2320000 EE526130 526190-B
13.0000 19.0000 1.6250 281000     72900 48700   523000
346.075 482.600 36.512 1030000 0.42 1.44 266000 190000 1.40 1770000 EE203136 203190-B
13.6250 19.0000 1.4375 231000     59900 42700   398000
349.250 501.650 34.925 1350000 0.37 1.63 350000 220000 1.59 2780000 EE333137 333197-B
13.7500 19.7500 1.3750 304000     78700 49500   626000
371.475 508.000 38.100 1050000 0.44 1.36 273000 206000 1.33 1870000 EE231462 232000-B
14.6250 20.0000 1.5000 236000     61300 46200   420000
374.650 522.288 38.100 1390000 0.39 1.56 360000 238000 1.51 2950000 LM565943 LM565910-B
14.7500 20.5625 1.5000 313000     81000 53500   663000

You can get competitive price of NTN bearing from our company. More information, please contact us  E-mail：sale@adyrbearing.com

ADYR Bearing Co.,Limited. has been engaged in bearing industry for many years, we provide a wide selections of brands including Timken bearing, INA bearing, FAG bearing, NTN bearings, SKF bearings, deep groove ball bearings, cylindrical roller bearings, tapered roller bearings, self-aligning ball bearings,thrust ball bearings, rolling mill bearings, spherical roller thrust bearings, spherical bearings, adapter sleeves, withdrawal sleeves, lock nut, lock washer,locking device, etc.



We can provide bearing and non-standard bearings, linear bearings, automotive bearings, large bearings, railway bearings, spherical plain bearings, high temperature, super-precision bearings, as well as some rare types customized to your need.

Our bearings are exported to countries and regions in Europe (the UK, France, Italy, Germany), North America (USA, Canda),

Middle East and Southeast Asia.Our goal is to exceed our customers’ expectation in providing quality products and continue to improve the services we
provide on a timely manner.Please view the products at our website that we can supply. You can also contact our sales representative to request a
price quotation on the products that you are looking for that may not been shown on our website.
