L860049A/L860010 Timken Roller Bearing

L860049A/L860010 Timken Roller Bearing

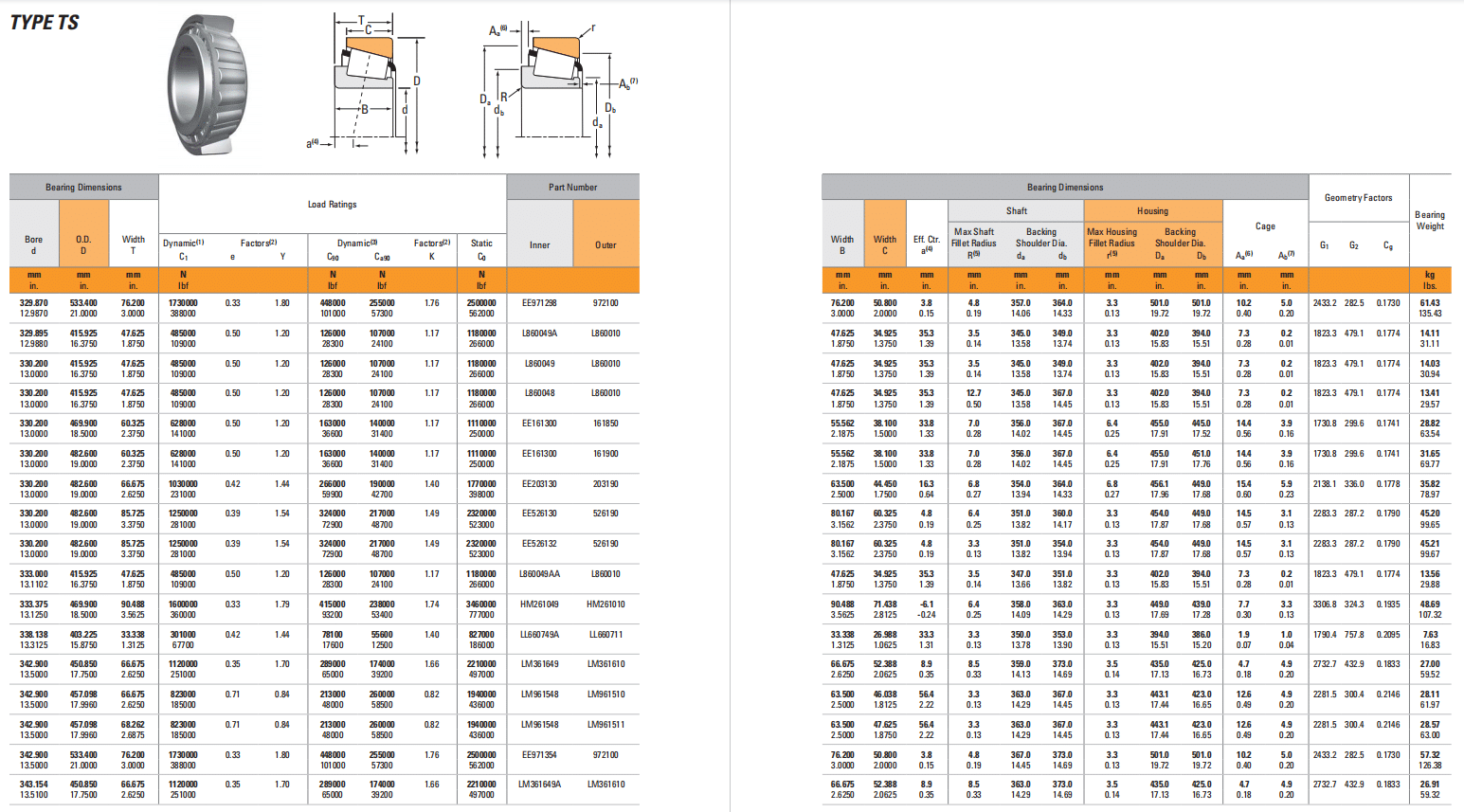

TAPERED ROLLER BEARINGS

Timken Bearing



Bearing Dimensions

Load Ratings

Part Number

Bore

d

O.D.

D

Width

T



Inner



Outer

      Dynamic(1)                   Factors(2)

C1                      e                 Y

Dynamic(3)                   Factors(2)

C90                   Ca90                    K

Static

C0


mm

in.

mm

in.

mm

in.

N

lbf

N

lbf

N

lbf

N

lbf


329.870

12.9870

533.400

21.0000

76.200

3.0000

1730000         0.33             1.80

388000

448000

101000

255000

57300

1.76 2500000

562000

EE971298             972100
329.895

12.9880

415.925

16.3750

47.625

1.8750

485000

109000

0.50             1.20 126000

28300

107000

24100

1.17 1180000

266000

L860049A             L860010
330.200

13.0000

415.925

16.3750

47.625

1.8750

485000

109000

0.50             1.20 126000

28300

107000

24100

1.17 1180000

266000

L860049              L860010
330.200

13.0000

415.925

16.3750

47.625

1.8750

485000

109000

0.50             1.20 126000

28300

107000

24100

1.17 1180000

266000

L860048              L860010
330.200

13.0000

469.900

18.5000

60.325

2.3750

628000

141000

0.50             1.20 163000

36600

140000

31400

1.17 1110000

250000

EE161300              161850
330.200

13.0000

482.600

19.0000

60.325

2.3750

628000

141000

0.50             1.20 163000

36600

140000

31400

1.17 1110000

250000

EE161300              161900
330.200

13.0000

482.600

19.0000

66.675

2.6250

1030000         0.42             1.44

231000

266000

59900

190000

42700

1.40 1770000

398000

EE203130             203190
330.200

13.0000

482.600

19.0000

85.725

3.3750

1250000         0.39             1.54

281000

324000

72900

217000

48700

1.49 2320000

523000

EE526130             526190
330.200

13.0000

482.600

19.0000

85.725

3.3750

1250000         0.39             1.54

281000

324000

72900

217000

48700

1.49 2320000

523000

EE526132             526190
333.000

13.1102

415.925

16.3750

47.625

1.8750

485000

109000

0.50             1.20 126000

28300

107000

24100

1.17 1180000

266000

L860049AA            L860010
333.375

13.1250

469.900

18.5000

90.488

3.5625

1600000         0.33             1.79

360000

415000

93200

238000

53400

1.74 3460000

777000

HM261049          HM261010
338.138

13.3125

403.225

15.8750

33.338

1.3125

301000

67700

0.42             1.44 78100

17600

55600

12500

1.40 827000

186000

LL660749A           LL660711
342.900

13.5000

450.850

17.7500

66.675

2.6250

1120000         0.35             1.70

251000

289000

65000

174000

39200

1.66 2210000

497000

LM361649           LM361610
342.900

13.5000

457.098

17.9960

66.675

2.6250

823000          0.71             0.84

185000

213000

48000

260000

58500

0.82 1940000

436000

LM961548           LM961510
342.900

13.5000

457.098

17.9960

68.262

2.6875

823000          0.71             0.84

185000

213000

48000

260000

58500

0.82 1940000

436000

LM961548           LM961511
342.900

13.5000

533.400

21.0000

76.200

3.0000

1730000         0.33             1.80

388000

448000

101000

255000

57300

1.76 2500000

562000

EE971354             972100
343.154

13.5100

450.850

17.7500

66.675

2.6250

1120000         0.35             1.70

251000

289000

65000

174000

39200

1.66 2210000

497000

LM361649A          LM361610
