M284249D/M284210 KOYO Bearing

M284249D/M284210 KOYO Bearing

KOYO BEARING

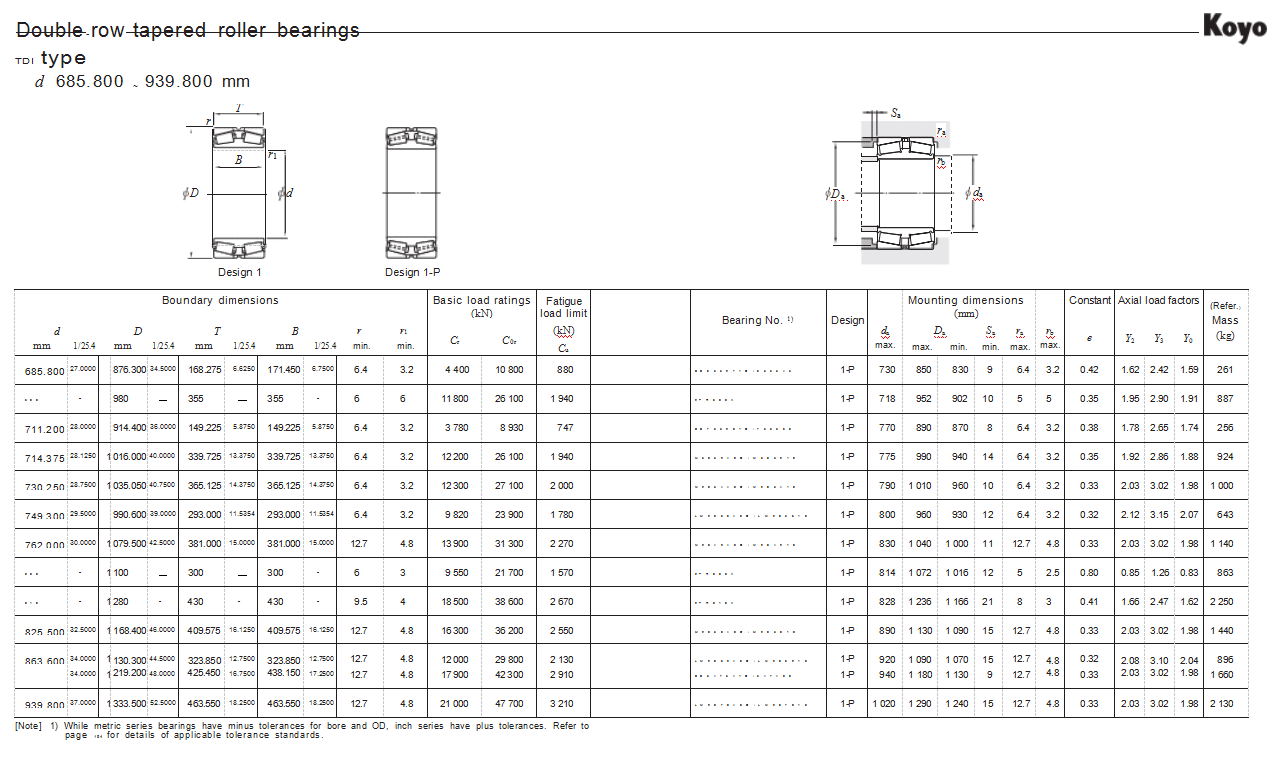

Tapered roller bearings

KOYO tapered roller bearings

Bearing No. 1)

Design



da     max.

Mounting dimensions

(mm)

Da                      Sa           ra

max.      min.     min.    max.



rb     max.

Constant



e

Axial load factors



Y2           Y3           Y0

(Refer.)

Mass

(kg)

EE655271D/655345 1-P 730 850 830 9 6.4 3.2 0.42 1.62 2.42 1.59 261
2TR690A 1-P 718 952 902 10 5 5 0.35 1.95 2.90 1.91 887
EE755281D/755360 1-P 770 890 870 8 6.4 3.2 0.38 1.78 2.65 1.74 256
M383240D/M383210 1-P 775 990 940 14 6.4 3.2 0.35 1.92 2.86 1.88 924
M283449D/M283410 1-P 790 1 010 960 10 6.4 3.2 0.33 2.03 3.02 1.98 1 000
LM283649D/LM283610 1-P 800 960 930 12 6.4 3.2 0.32 2.12 3.15 2.07 643
M284249D/M284210 1-P 830 1 040 1 000 11 12.7 4.8 0.33 2.03 3.02 1.98 1 140
2TR800A 1-P 814 1 072 1 016 12 5 2.5 0.80 0.85 1.26 0.83 863
2TR810A 1-P 828 1 236 1 166 21 8 3 0.41 1.66 2.47 1.62 2 250
M285848D/M285810 1-P 890 1 130 1 090 15 12.7 4.8 0.33 2.03 3.02 1.98 1 440
LM286249D/LM286210

EE547341D/547480

1-P

1-P

920

940

1 090

1 180

1 070

1 130

15

9

12.7

12.7

4.8 4.8 0.32

0.33

2.08 2.03 3.10 3.02 2.04 1.98 896

1 660

LM287849D/LM287810 1-P 1 020 1 290 1 240 15 12.7 4.8 0.33 2.03 3.02 1.98 2 130
