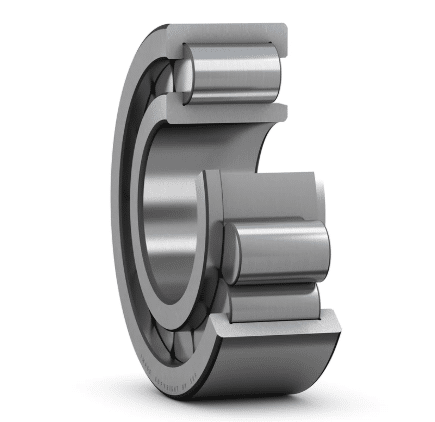

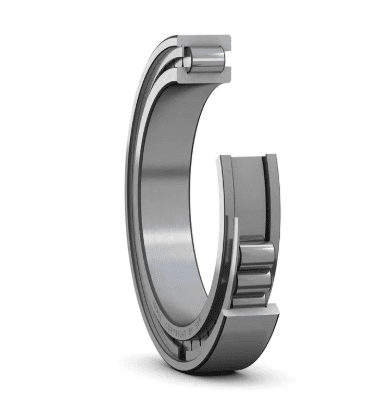

SKF Single row full complement cylindrical roller bearings
| Designation | Principal dimensions | Basic load ratings | Speed ratings | ||||
| dynamic | static | Reference speed | Limiting speed | ||||
| d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | |
| NCF 18/1000 V | 1 000 | 1 220 | 100 | 2 920 | 7 500 | 160 | 200 |
| NCF 18/1120 V | 1 120 | 1 360 | 106 | 3 740 | 9 650 | 130 | 170 |
| NCF 18/500 V | 500 | 620 | 56 | 952 | 2 120 | 380 | 480 |
| NCF 18/530 V | 530 | 650 | 56 | 990 | 2 240 | 360 | 450 |
| NCF 18/560 V/HB1 | 560 | 680 | 56 | 1 020 | 2 360 | 340 | 430 |
| NCF 18/600 V | 600 | 730 | 60 | 1 050 | 2 550 | 320 | 400 |
| NCF 18/630 V | 630 | 780 | 69 | 1 250 | 2 900 | 300 | 360 |
| NCF 18/670 V | 670 | 820 | 69 | 1 300 | 3 150 | 280 | 340 |
| NCF 18/710 V | 710 | 870 | 74 | 1 540 | 3 750 | 260 | 320 |
| NCF 18/750 V | 750 | 920 | 78 | 1 760 | 4 300 | 240 | 300 |
| NCF 18/800 V | 800 | 980 | 82 | 1 940 | 4 800 | 220 | 280 |
| NCF 18/850 V | 850 | 1 030 | 82 | 2 050 | 5 200 | 200 | 260 |
| NCF 18/900 V/HB1 | 900 | 1 090 | 85 | 2 240 | 5 700 | 190 | 240 |
| NCF 18/950 V | 950 | 1 150 | 90 | 2 420 | 6 300 | 170 | 220 |
| NCF 1852 V | 260 | 320 | 28 | 270 | 550 | 800 | 1 000 |
| NCF 1856 V | 280 | 350 | 33 | 341 | 695 | 750 | 950 |
| NCF 1864 V | 320 | 400 | 38 | 440 | 900 | 630 | 800 |
| NCF 1868 V | 340 | 420 | 38 | 446 | 950 | 600 | 750 |
| NCF 1872 V | 360 | 440 | 38 | 402 | 900 | 560 | 700 |
| NCF 1876 V | 380 | 480 | 46 | 627 | 1 290 | 530 | 670 |
| NCF 1880 V | 400 | 500 | 46 | 627 | 1 340 | 500 | 630 |
| NCF 1884 V | 420 | 520 | 46 | 660 | 1 430 | 480 | 600 |
| NCF 1888 V | 440 | 540 | 46 | 671 | 1 460 | 450 | 560 |
| NCF 1896 V | 480 | 600 | 56 | 935 | 2 040 | 400 | 500 |
| NCF 2224 V | 120 | 215 | 58 | 512 | 735 | 1 400 | 1 700 |
| NCF 2234 V | 170 | 310 | 86 | 1 100 | 1 700 | 900 | 1 100 |
| NCF 28/1000 V | 1 000 | 1 220 | 128 | 4 130 | 11 600 | 160 | 200 |
| NCF 28/500 V | 500 | 620 | 72 | 1 340 | 3 350 | 380 | 480 |
| NCF 28/530 V | 530 | 650 | 72 | 1 400 | 3 450 | 360 | 450 |
| NCF 28/560 V | 560 | 680 | 72 | 1 420 | 3 650 | 340 | 430 |
