SKF Bearing

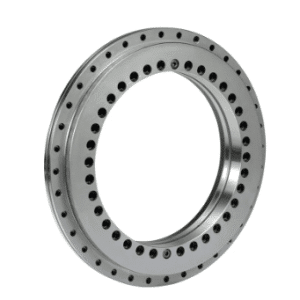

NRT850A SKF Axial-radial cylindrical roller bearings

Axial-radial cylindrical roller bearings

Super-precision axial-radial cylindrical roller bearings are commonly used to support rotary tables, indexing heads and multi-spindle heads on machining centres. SKF manufactures super-precision axial-radial cylindrical roller bearings for shaft diameters from 80 to 850 mm. Their internal design, together with close tolerance manufacturing processes, enables these bearings to attain radial run-out better than, and axial run-out close to, P4 tolerance class.

Get A Quote
Contact Us

SKF Axial-radial cylindrical roller bearings





Designation Principal dimensions Basic radial load ratings Basic axial load ratings Attainable speeds Rotary table
dynamic static dynamic static Grease lubrication Oil lubrication Guideline diameter
d[mm] D[mm] H[mm] C[kN] C0[kN] C[kN] C0[kN] [r/min] [r/min] [mm]
 NRT80B  80   146   35   55   102   37.5   200   350   700   200
 NRT100B   100   185   38   58.3   116   68   400   280   560   260
 NRT120B   120   210   40   64.4   140   72   450   230   460   315
 NRT150B   150   240   40   67.1   160   75   490   210   420   350
 NRT180B   180   280   43   89.7   236   80   560   190   380   400
 NRT200B   200   300   45   93.5   270   85   630   170   340   500
 NRT260B   260   385   55   108   355   95   780   130   260   630
 NRT325B   325   450   60   134   450   153   1 660   110   220   700
 NRT395B   395   525   65   147   530   166   1 960   90   180   800
 NRT460A   460   600   70   201   765   180   2 240   80   160   1 000
 NRT650A   650   870   122   413   1 600   365   5 000   55   110   1 450
 NRT850A   850   1 095   124   473   2 120   415   6 400   40   80   1 800
