| Part Number |
|---|
| HR32005XJ |
| Volume Discount | Days to Ship | RoHS | I.D. (Ø) |
O.D. (Ø) |
Width (mm) |
Number Of Raceway Ring Rows | Outer Ring Type | Rotational Speed (rpm) |
Basic Load Rating, Dynamic Rating (N) |
Basic Load Rating, Static Rating (N) |
Clearance sign | Format | Holder Symbol | Symbol of Bearing Ring Shape | Precision Grade Symbol | Symbol of contact angle | Internal Symbol | Spacer, Sleeve symbol |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Available | 4 Days | 10 | 25 | 47 | 15 | Single Row | – | 8000 | 27400 | 33000 | No | Standard | No | No | No | No | J | No |
| Part Number |
|---|
Basic Information
| Raceway Ring Shape | Tapered Roller | Load Direction | Radial | Inner/Outer Ring Material | Steel |
|---|---|---|---|---|---|
| Outer Ring | With Outer Ring | Precision JIS | Grade 0 | Standard Size | Metric System |
| Specification | Standard | Rolling Element Material | Steel | Retainer Type | Punching |
| Combination symbol | No | Special Configurations Code | No | Material Symbol | No |

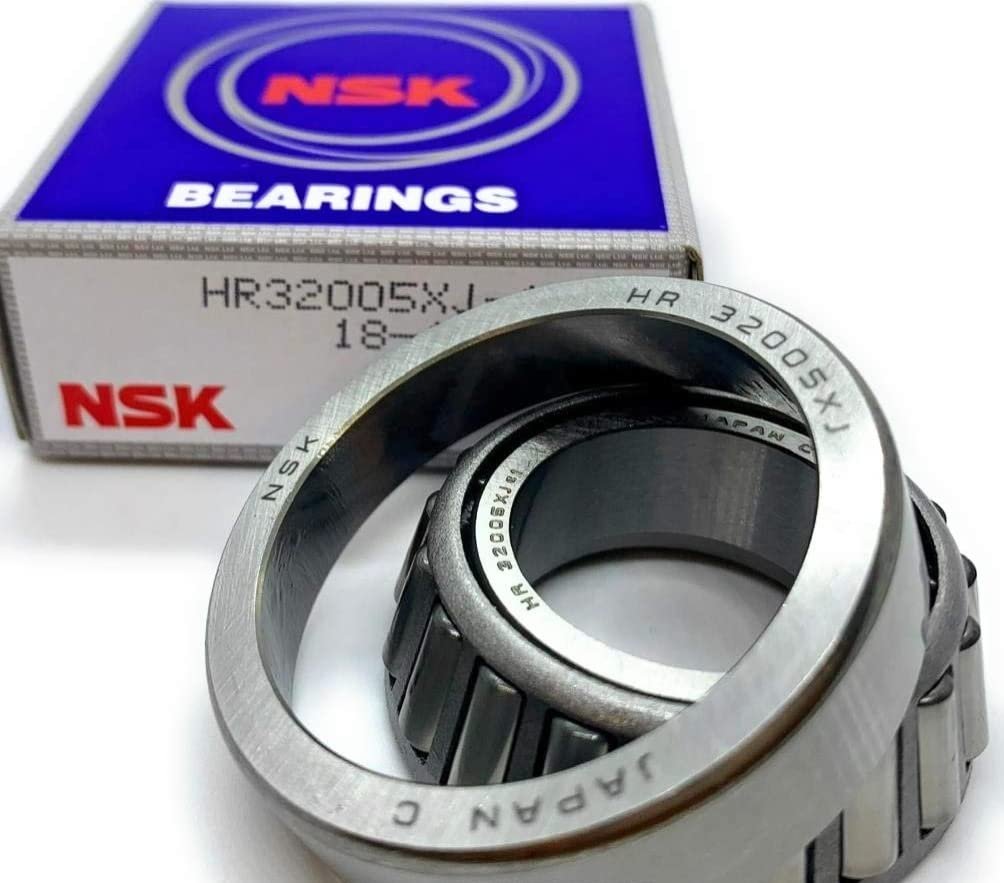

Product Notes: Please check the product specification for the part number HR32005XJ on the Tapered Roller Bearing. The HR32005XJ is included in our offerings for NSK Roller Bearings and our full line of NSK products.
