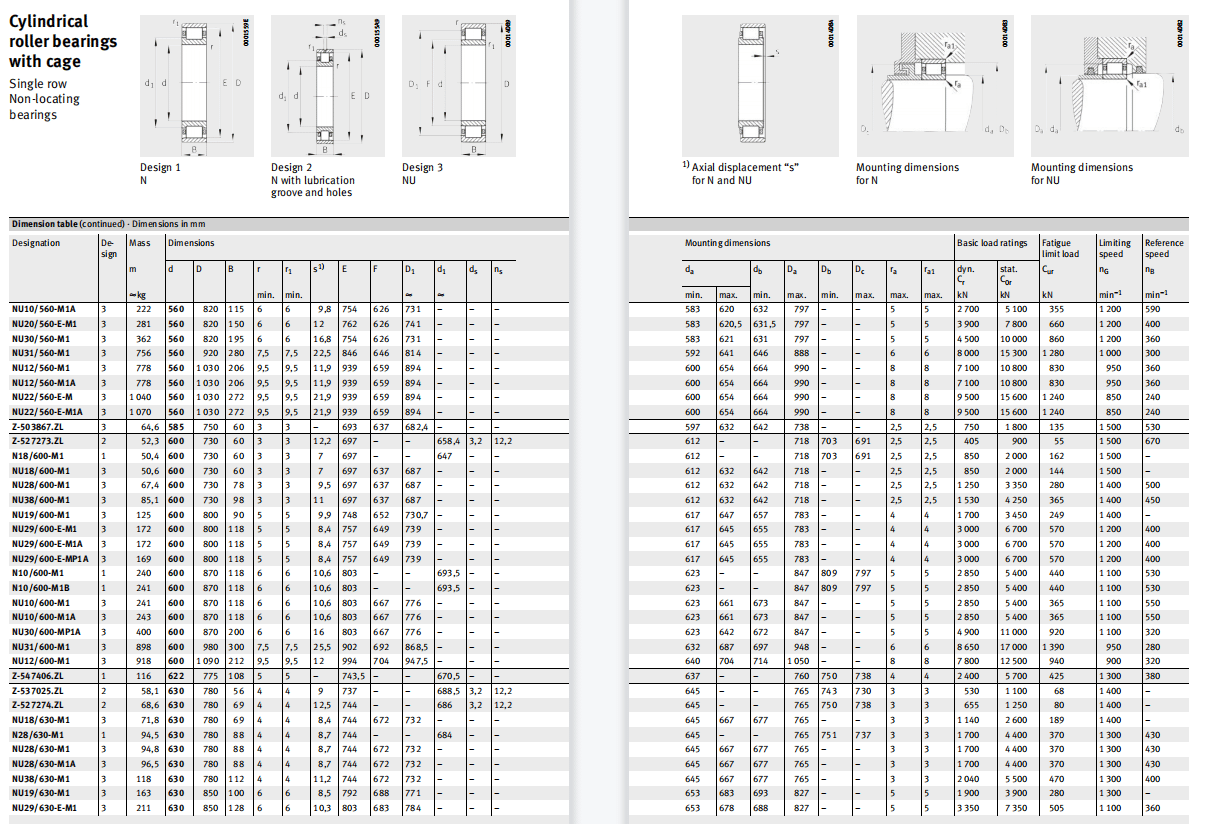

FAG Cylindrical roller bearings
| Designation | De-
sign |
Mass
m 必kg |
Dimensions | |||||||||||
| d D B r r1 s1) E F D1 d1 ds ns | ||||||||||||||
| min. min. | 必 必 | |||||||||||||
| NU10/560-M1A NU20/560-E-M1 NU30/560-M1 NU31/560-M1 NU12/560-M1 NU12/560-M1A NU22/560-E-M NU22/560-E-M1A | 3
3 3 3 3 3 3 3 |
222
281 362 756 778 778 1040 1070 |
560
560 560 560 560 560 560 560 |
820
820 820 920 1 030 1 030 1 030 1 030 |
115
150 195 280 206 206 272 272 |
6
6 6 7,5 9,5 9,5 9,5 9,5 |
6
6 6 7,5 9,5 9,5 9,5 9,5 |
9,8
12 16,8 22,5 11,9 11,9 21,9 21,9 |
754
762 754 846 939 939 939 939 |
626
626 626 646 659 659 659 659 |
731
741 731 814 894 894 894 894 |
–
– – – – – – – |
–
– – – – – – – |
–
– – – – – – – |
| Z-503867.ZL | 3 | 64,6 | 585 | 750 | 60 | 3 | 3 | – | 693 | 637 | 682,4 | – | – | – |
| Z-527273.ZL
N18/600-M1 NU18/600-M1 NU28/600-M1 NU38/600-M1 NU19/600-M1 NU29/600-E-M1 NU29/600-E-M1A NU29/600-E-MP1A N10/600-M1 N10/600-M1B NU10/600-M1 NU10/600-M1A NU30/600-MP1A NU31/600-M1 NU12/600-M1 |
2
1 3 3 3 3 3 3 3 1 1 3 3 3 3 3 |
52,3
50,4 50,6 67,4 85,1 125 172 172 169 240 241 241 243 400 898 918 |
600
600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 |
730
730 730 730 730 800 800 800 800 870 870 870 870 870 980 1 090 |
60
60 60 78 98 90 118 118 118 118 118 118 118 200 300 212 |
3
3 3 3 3 5 5 5 5 6 6 6 6 6 7,5 9,5 |
3
3 3 3 3 5 5 5 5 6 6 6 6 6 7,5 9,5 |
12,2
7 7 9,5 11 9,9 8,4 8,4 8,4 10,6 10,6 10,6 10,6 16 25,5 12 |
697
697 697 697 697 748 757 757 757 803 803 803 803 803 902 994 |
–
– 637 637 637 652 649 649 649 – – 667 667 667 692 704 |
–
– 687 687 687 730,7 739 739 739 – – 776 776 776 868,5 947,5 |
658,4
647 – – – – – – – 693,5 693,5 – – – – – |
3,2
– – – – – – – – – – – – – – – |
12,2
– – – – – – – – – – – – – – – |
| Z-547406.ZL | 1 | 116 | 622 | 775 | 108 | 5 | 5 | – | 743,5 | – | – | 670,5 | – | – |
| Z-537025.ZL
Z-527274.ZL NU18/630-M1 N28/630-M1 NU28/630-M1 NU28/630-M1A NU38/630-M1 NU19/630-M1 NU29/630-E-M1 |
2
2 3 1 3 3 3 3 3 |
58,1
68,6 71,8 94,5 94,8 96,5 118 163 211 |
630
630 630 630 630 630 630 630 630 |
780
780 780 780 780 780 780 850 850 |
56
69 69 88 88 88 112 100 128 |
4
4 4 4 4 4 4 6 6 |
4
4 4 4 4 4 4 6 6 |
9
12,5 8,4 8,7 8,7 8,7 11,2 8,5 10,3 |
737
744 744 744 744 744 744 792 803 |
–
– 672 – 672 672 672 688 683 |
–
– 732 – 732 732 732 771 784 |
688,5
686 – 684 – – – – – |
3,2
3,2 – – – – – – – |
12,2
12,2 – – – – – – – |
