SKF cylindrical roller bearings

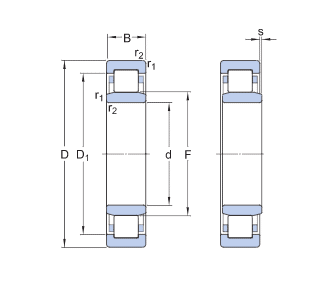

Designation | Principal dimensions | Basic load ratings | Speed ratings | ||||
dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | |
NU 320 ECM | 100 | 215 | 47 | 450 | 440 | 3 200 | 3 800 |
NU 320 ECML | 100 | 215 | 47 | 450 | 440 | 3 200 | 6 000 |
NU 320 ECP | 100 | 215 | 47 | 450 | 440 | 3 200 | 3 800 |
NU 321 ECJ | 105 | 225 | 49 | 500 | 500 | 3 200 | 3 800 |
NU 321 ECML | 105 | 225 | 49 | 500 | 500 | 3 200 | 5 600 |
NU 321 ECP | 105 | 225 | 49 | 500 | 500 | 3 200 | 3 800 |
NU 322 ECJ | 110 | 240 | 50 | 530 | 540 | 3 000 | 3 400 |
NU 322 ECM | 110 | 240 | 50 | 530 | 540 | 3 000 | 3 400 |
NU 322 ECML | 110 | 240 | 50 | 530 | 540 | 3 000 | 5 300 |
NU 322 ECP | 110 | 240 | 50 | 530 | 540 | 3 000 | 3 400 |
NU 324 ECJ | 120 | 260 | 55 | 610 | 620 | 2 800 | 3 200 |
NU 324 ECM | 120 | 260 | 55 | 610 | 620 | 2 800 | 3 200 |
NU 324 ECML | 120 | 260 | 55 | 610 | 620 | 2 800 | 5 000 |
NU 324 ECP | 120 | 260 | 55 | 610 | 620 | 2 800 | 3 200 |
NU 324 ECPH | 120 | 260 | 55 | 610 | 620 | 2 800 | 3 200 |
NU 326 ECJ | 130 | 280 | 58 | 720 | 750 | 2 400 | 3 000 |
NU 326 ECM | 130 | 280 | 58 | 720 | 750 | 2 400 | 3 000 |
NU 326 ECML | 130 | 280 | 58 | 720 | 750 | 2 400 | 4 500 |
NU 326 ECP | 130 | 280 | 58 | 720 | 750 | 2 400 | 3 000 |
NU 328 ECJ | 140 | 300 | 62 | 780 | 830 | 2 400 | 2 800 |
NU 328 ECM | 140 | 300 | 62 | 780 | 830 | 2 400 | 2 800 |
NU 328 ECML | 140 | 300 | 62 | 780 | 830 | 2 400 | 4 300 |
NU 330 ECM | 150 | 320 | 65 | 900 | 965 | 2 200 | 2 600 |
NU 330 ECML | 150 | 320 | 65 | 900 | 965 | 2 200 | 4 000 |
NU 332 ECM | 160 | 340 | 68 | 1 000 | 1 080 | 2 000 | 2 400 |
NU 332 ECML | 160 | 340 | 68 | 1 000 | 1 080 | 2 000 | 3 600 |
NU 334 ECM | 170 | 360 | 72 | 952 | 1 180 | 1 700 | 2 200 |
NU 336 ECM | 180 | 380 | 75 | 1 020 | 1 290 | 1 600 | 2 200 |
NU 338 ECM | 190 | 400 | 78 | 1 140 | 1 500 | 1 500 | 2 000 |
NU 340 ECML | 200 | 420 | 80 | 1 230 | 1 630 | 1 400 | 2 800 |
