T-8578/8520 Bearing NTN

PRODUCT CATEGORIES

T-8578/8520 Bearing NTN
T-8578/8520 Bearing NTN - Image 2
T-8578/8520 Bearing NTN - Image 3

T-8578/8520 Bearing NTN

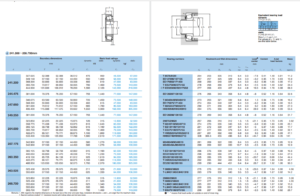

Single Row Tapered Roller Bearings

T-8578/8520 Bearing NTN





























Bearing numbers da Abutment and fillet dimensions

mm
ras
db                            Da                            Db                       max

          r1as
max		 Loado
center
mm

a

 Constant

e

 Axial
load factors		 Mass

kg

(approx.)
Y2 Yo
T-8578/8520 264 253 305 313 6.4 3.3 –7.8 0.41 1.48 0.81 11.2
EE127095/127135 267 257 325 329 6.4 3.3 –3.2 0.35 1.70 0.93 15.9
EE170950/171450 269 260 340 337 6.4 3.3 –6.2 0.36 1.65 0.90 17.2
T-EE275095/275155 278 268 366 378 6.4 6.4 –2.5 0.40 1.49 0.82 34.3
☆T-EE923095/923175G2 277 268 403 407 6.4 4.8 19.3 0.34 1.78 0.98 68.0
EE126097/126150 275 266 343 358 6.4 4.8 –8 0.52 1.16 0.64 32.6
T-M348449/M348410 273 263 321 332 6.4 6.4 1.3 0.34 1.75 0.96 16.2
EE170975/171450 274 264 340 337 6.4 3.3 –6.2 0.36 1.65 0.90 16.5
T-M252337/M252310 280 271 356 364 6.4 3.3 6.2 0.33 1.80 0.99 27.3
HH249949/HH249910 284 275 366 383 6.4 6.4 28.9 0.33 1.80 0.99 55.6
EE126098/126150 279 269 343 358 6.4 4.8 –8 0.52 1.16 0.64 31.7
29875/29820 267 266 310 312 1.5 1.5 –21.1 0.35 1.73 0.95 3.92
T-M249749/M249710 274 270 335 343 3.5 3.3 –6.9 0.33 1.80 0.99 20.1
T-EE134100/134143 281 272 339 347 6.4 6.4 –5 0.37 1.60 0.88 17.7
T-EE275100/275155 287 277 366 378 6.4 6.4 –2.5 0.40 1.49 0.82 32.1
T-HM252343/HM252310 287 281 392 400 6.8 3.3 9.3 0.33 1.80 0.99 47.1
HH953749/HH953710 328 306.3 455 496 6.4 6.4 –44.7 0.94 0.64 0.35 141
M349549/M349510 281 269 322 333 6.4 3.3 –2.5 0.35 1.73 0.95 12.9
M349549A/M349510 289 269 322 333 10.7 3.3 –2.5 0.35 1.73 0.95 12.9
T-EE134102/134143 286 276 339 347 6.4 6.4 –5 0.37 1.60 0.88 16.8
EE221026/221575 296 280 366 372 9.7 6.4 –1.8 0.39 1.52 0.84 27.0
EE435102/435165 295 285 376 395 6.4 3.3 –20.7 0.61 0.99 0.54 44.4
T-HM252348/HM252310 292 285 392 400 6.8 3.3 9.3 0.33 1.80 0.99 45.7
EE295102/295193 299 290 444 451 6.4 6.4 28.7 0.31 1.92 1.06 90.3
T-38880/38820 275 275 312 315 1.5 1.5 –20.5 0.37 1.64 0.90 4.56
T-LM451345/LM451310 283 279 335 343 3.5 3.3 –4.7 0.36 1.67 0.92 14.2
29880/29820 277 275 310 312 1.5 1.5 –21.1 0.35 1.73 0.95 3.28
T-38885/38820 277 277 312 315 1.5 1.5 –20.5 0.37 1.64 0.90 4.35
T-LM451349/LM451310 285 281 335 343 3.5 3.3 –4.7 0.36 1.67 0.92 15.0
T-LM451349A/LM451310 299 281 335 343 10.5 3.3 –4.7 0.36 1.67 0.92 13.8
T-EE275105/275155 296 287 366 378 6.4 6.4 –2.5 0.40 1.49 0.82 29.7

You can get competitive price of  bearing from our company. More information, please contact us E-mail：sale@adyrbearing.com



ADYR Bearing Co.,Limited. has been engaged in bearing industry for many years, we provide a wide selections of brands including Timken bearing, INA bearing,IKO bearing, FAG bearing,NTN bearings, SKF bearings, deep groove ball bearings, cylindrical roller bearings, tapered roller bearings, self-aligning ball bearings,thrust ball bearings, rolling mill bearings, spherical roller thrust bearings, spherical bearings, adapter sleeves, withdrawal sleeves, lock nut, lock washer,locking device, etc.

We can provide bearing and non-standard bearings, linear bearings, automotive bearings, large bearings, railway bearings, spherical plain bearings, high temperature, super-precision bearings, as well as some rare types customized to your need.

Our bearings are exported to countries and regions in Europe (the UK, France, Italy, Germany), North America (USA, Canda),Middle East and Southeast Asia.Our goal is to exceed our customers’ expectation in providing quality products and continue to improve the services we provide on a timely manner.Please view the products at our website that we can supply. You can also contact our sales representative to request a price quotation on the products that you are looking for that may not been shown on our website.

Packaging & Shipping
1.industrial packing+industrial cartons+pallets
2.single brand box+brand cartons+pallets
3.follow customer’s requests
A.Plastic Tubes or Single Boxes ( Usually 10pcs in one plastic tube for steel bearings);
B.Cartons ( No more than 30kg for one carton );
C. Pallet ( Usually more than 400kg totally will use pallet )
D. Delivery time :7-35 days ( by sea or by air )
Generally,We will choose the most suitable packing method for products. If you have any special requirements for packing, pleasecontact us in advance.
After Sales Service
In order to meet the increasing market demand, and better serve the customers, we has built a professional team composed of sales engineers to provide perfect pre-sales and after-sales services.We provide consulting services for maintenance, procurement and design staff concerning the basic knowledge, selection, installation and removal, lubrication, maintenance and equipment management of imported bearings.All these services are mean to reduce the installation errors, form good work and safety habits and improve the efficiency of maintenance personnel, thus achieving the best use effect and the maximum bearing life.We also help users analyze the failure of the bearing, confirm the causes, provide solutions for this issue and give suggestions on precautionary measures.
FAQ
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibilities when defective products were found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we also customize OEM box and packing as your requirements.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q:Do you offer free samples??
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users.
Q:How to place order?
A: 1. Email us the model, brand and quantity,shipping way of bearings and we will quote our best price for you;
2. Proforma Invoice made and sent to you as the price agreed by both parts;
3. Deposit Payment after confirming the PI and we arrange production;
4. Balance paid before shipment or after copy of Bill of Loading.
