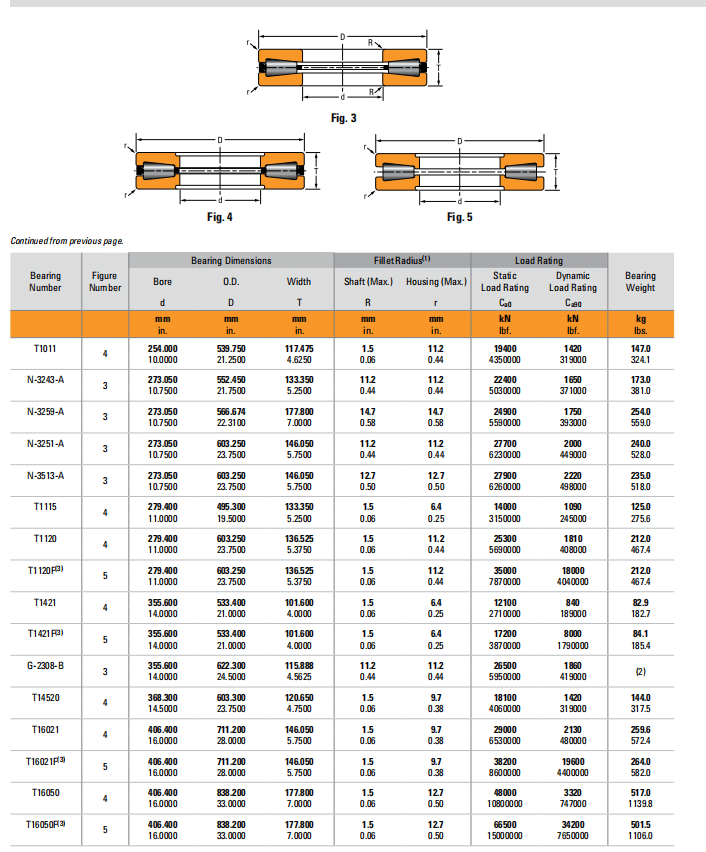

Timken Bearing
| Bearing
Number |
Figure Number |
Bore d |
Bearing Dimensions
O.D. D |
Width T |
Fillet Radius(1)
Shaft (Max.) Housing (Max.) R r |
Load
Static Load Rating Ca0 |
Rating
Dynamic Load Rating Ca90 |
Bearing Weight |
|
| mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
kN
lbf. |
kN
lbf. |
kg
lbs. |
||
| T1011 | 4 | 254.000
10.0000 |
539.750
21.2500 |
117.475
4.6250 |
1.5
0.06 |
11.2
0.44 |
19400
4350000 |
1420
319000 |
147.0
324.1 |
| N-3243-A | 3 | 273.050
10.7500 |
552.450
21.7500 |
133.350
5.2500 |
11.2
0.44 |
11.2
0.44 |
22400
5030000 |
1650
371000 |
173.0
381.0 |
| N-3259-A | 3 | 273.050
10.7500 |
566.674
22.3100 |
177.800
7.0000 |
14.7
0.58 |
14.7
0.58 |
24900
5590000 |
1750
393000 |
254.0
559.0 |
| N-3251-A | 3 | 273.050
10.7500 |
603.250
23.7500 |
146.050
5.7500 |
11.2
0.44 |
11.2
0.44 |
27700
6230000 |
2000
449000 |
240.0
528.0 |
| N-3513-A | 3 | 273.050
10.7500 |
603.250
23.7500 |
146.050
5.7500 |
12.7
0.50 |
12.7
0.50 |
27900
6260000 |
2220
498000 |
235.0
518.0 |
| T1115 | 4 | 279.400
11.0000 |
495.300
19.5000 |
133.350
5.2500 |
1.5
0.06 |
6.4
0.25 |
14000
3150000 |
1090
245000 |
125.0
275.6 |
| T1120 | 4 | 279.400
11.0000 |
603.250
23.7500 |
136.525
5.3750 |
1.5
0.06 |
11.2
0.44 |
25300
5690000 |
1810
408000 |
212.0
467.4 |
| T1120F(3) | 5 | 279.400
11.0000 |
603.250
23.7500 |
136.525
5.3750 |
1.5
0.06 |
11.2
0.44 |
35000
7870000 |
18000
4040000 |
212.0
467.4 |
| T1421 | 4 | 355.600
14.0000 |
533.400
21.0000 |
101.600
4.0000 |
1.5
0.06 |
6.4
0.25 |
12100
2710000 |
840
189000 |
82.9
182.7 |
| T1421F(3) | 5 | 355.600
14.0000 |
533.400
21.0000 |
101.600
4.0000 |
1.5
0.06 |
6.4
0.25 |
17200
3870000 |
8000
1790000 |
84.1
185.4 |
| G-2308-B | 3 | 355.600
14.0000 |
622.300
24.5000 |
115.888
4.5625 |
11.2
0.44 |
11.2
0.44 |
26500
5950000 |
1860
419000 |
(2) |
| T14520 | 4 | 368.300
14.5000 |
603.300
23.7500 |
120.650
4.7500 |
1.5
0.06 |
9.7
0.38 |
18100
4060000 |
1420
319000 |
144.0
317.5 |
| T16021 | 4 | 406.400
16.0000 |
711.200
28.0000 |
146.050
5.7500 |
1.5
0.06 |
9.7
0.38 |
29000
6530000 |
2130
480000 |
259.6
572.4 |
| T16021F(3) | 5 | 406.400
16.0000 |
711.200
28.0000 |
146.050
5.7500 |
1.5
0.06 |
9.7
0.38 |
38200
8600000 |
19600
4400000 |
264.0
582.0 |
| T16050 | 4 | 406.400
16.0000 |
838.200
33.0000 |
177.800
7.0000 |
1.5
0.06 |
12.7
0.50 |
48000
10800000 |
3320
747000 |
517.0
1139.8 |
| T16050F(3) | 5 | 406.400
16.0000 |
838.200
33.0000 |
177.800
7.0000 |
1.5
0.06 |
12.7
0.50 |
66500
15000000 |
34200
7650000 |
501.5
1106.0 |
