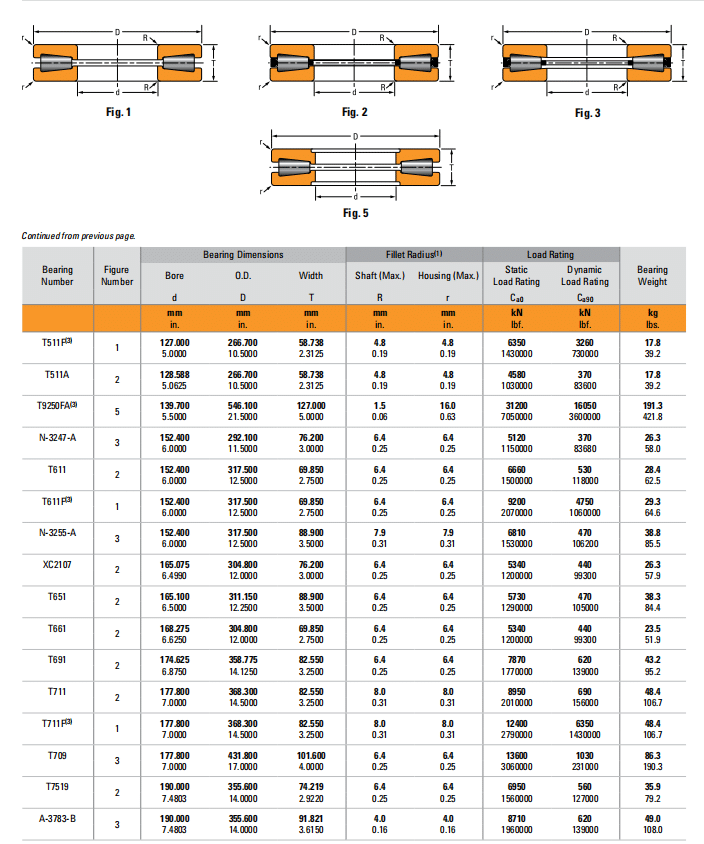

Timken Bearing
| Bearing
Number |
Figure Number |
Bore d |
Bearing Dimensions
O.D. D |
Width T |
Fillet Radius(1)
Shaft (Max.) Housing (Max.) R r |
Load
Static Load Rating Ca0 |
Rating
Dynamic Load Rating Ca90 |
Bearing Weight |
|
| mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
kN
lbf. |
kN
lbf. |
kg
lbs. |
||
| T511F(3) | 1 | 127.000
5.0000 |
266.700
10.5000 |
58.738
2.3125 |
4.8
0.19 |
4.8
0.19 |
6350
1430000 |
3260
730000 |
17.8
39.2 |
| T511A | 2 | 128.588
5.0625 |
266.700
10.5000 |
58.738
2.3125 |
4.8
0.19 |
4.8
0.19 |
4580
1030000 |
370
83600 |
17.8
39.2 |
| T9250FA(3) | 5 | 139.700
5.5000 |
546.100
21.5000 |
127.000
5.0000 |
1.5
0.06 |
16.0
0.63 |
31200
7050000 |
16050
3600000 |
191.3
421.8 |
| N-3247-A | 3 | 152.400
6.0000 |
292.100
11.5000 |
76.200
3.0000 |
6.4
0.25 |
6.4
0.25 |
5120
1150000 |
370
83680 |
26.3
58.0 |
| T611 | 2 | 152.400
6.0000 |
317.500
12.5000 |
69.850
2.7500 |
6.4
0.25 |
6.4
0.25 |
6660
1500000 |
530
118000 |
28.4
62.5 |
| T611F(3) | 1 | 152.400
6.0000 |
317.500
12.5000 |
69.850
2.7500 |
6.4
0.25 |
6.4
0.25 |
9200
2070000 |
4750
1060000 |
29.3
64.6 |
| N-3255-A | 3 | 152.400
6.0000 |
317.500
12.5000 |
88.900
3.5000 |
7.9
0.31 |
7.9
0.31 |
6810
1530000 |
470
106200 |
38.8
85.5 |
| XC2107 | 2 | 165.075
6.4990 |
304.800
12.0000 |
76.200
3.0000 |
6.4
0.25 |
6.4
0.25 |
5340
1200000 |
440
99300 |
26.3
57.9 |
| T651 | 2 | 165.100
6.5000 |
311.150
12.2500 |
88.900
3.5000 |
6.4
0.25 |
6.4
0.25 |
5730
1290000 |
470
105000 |
38.3
84.4 |
| T661 | 2 | 168.275
6.6250 |
304.800
12.0000 |
69.850
2.7500 |
6.4
0.25 |
6.4
0.25 |
5340
1200000 |
440
99300 |
23.5
51.9 |
| T691 | 2 | 174.625
6.8750 |
358.775
14.1250 |
82.550
3.2500 |
6.4
0.25 |
6.4
0.25 |
7870
1770000 |
620
139000 |
43.2
95.2 |
| T711 | 2 | 177.800
7.0000 |
368.300
14.5000 |
82.550
3.2500 |
8.0
0.31 |
8.0
0.31 |
8950
2010000 |
690
156000 |
48.4
106.7 |
| T711F(3) | 1 | 177.800
7.0000 |
368.300
14.5000 |
82.550
3.2500 |
8.0
0.31 |
8.0
0.31 |
12400
2790000 |
6350
1430000 |
48.4
106.7 |
| T709 | 3 | 177.800
7.0000 |
431.800
17.0000 |
101.600
4.0000 |
6.4
0.25 |
6.4
0.25 |
13600
3060000 |
1030
231000 |
86.3
190.3 |
| T7519 | 2 | 190.000
7.4803 |
355.600
14.0000 |
74.219
2.9220 |
6.4
0.25 |
6.4
0.25 |
6950
1560000 |
560
127000 |
35.9
79.2 |
| A-3783-B | 3 | 190.000
7.4803 |
355.600
14.0000 |
91.821
3.6150 |
4.0
0.16 |
4.0
0.16 |
8710
1960000 |
620
139000 |
49.0
108.0 |
