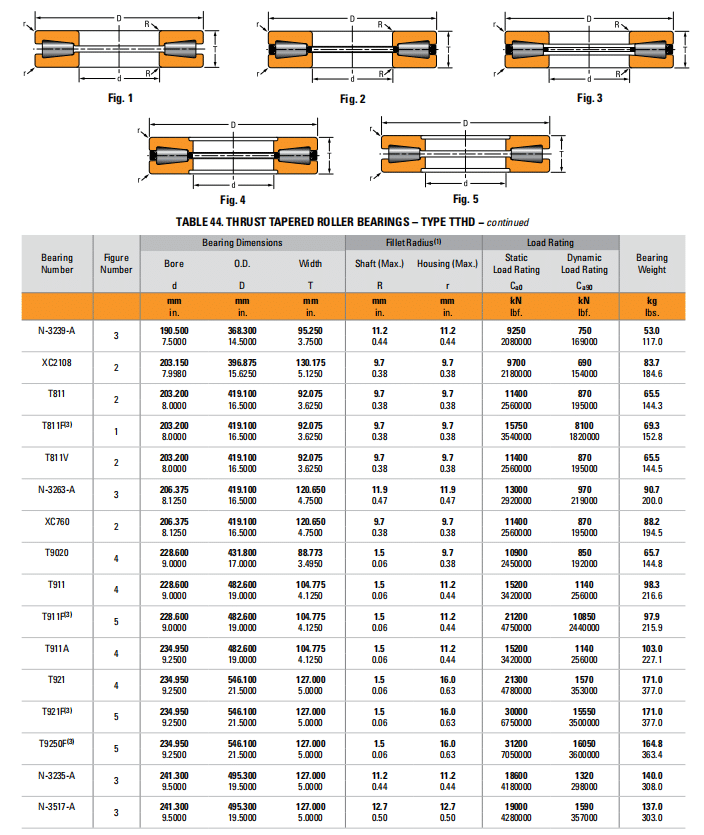

Timken Bearing
| Bearing
Number |
Figure Number |
Bore d |
Bearing Dimensions
O.D. D |
Width T |
Fillet Radius(1)
Shaft (Max.) Housing (Max.) R r |
Load
Static Load Rating Ca0 |
Rating
Dynamic Load Rating Ca90 |
Bearing Weight |
|
| mm
in. |
mm
in. |
mm
in. |
mm
in. |
mm
in. |
kN
lbf. |
kN
lbf. |
kg
lbs. |
||
| N-3239-A | 3 | 190.500
7.5000 |
368.300
14.5000 |
95.250
3.7500 |
11.2
0.44 |
11.2
0.44 |
9250
2080000 |
750
169000 |
53.0
117.0 |
| XC2108 | 2 | 203.150
7.9980 |
396.875
15.6250 |
130.175
5.1250 |
9.7
0.38 |
9.7
0.38 |
9700
2180000 |
690
154000 |
83.7
184.6 |
| T811 | 2 | 203.200
8.0000 |
419.100
16.5000 |
92.075
3.6250 |
9.7
0.38 |
9.7
0.38 |
11400
2560000 |
870
195000 |
65.5
144.3 |
| T811F(3) | 1 | 203.200
8.0000 |
419.100
16.5000 |
92.075
3.6250 |
9.7
0.38 |
9.7
0.38 |
15750
3540000 |
8100
1820000 |
69.3
152.8 |
| T811V | 2 | 203.200
8.0000 |
419.100
16.5000 |
92.075
3.6250 |
9.7
0.38 |
9.7
0.38 |
11400
2560000 |
870
195000 |
65.5
144.5 |
| N-3263-A | 3 | 206.375
8.1250 |
419.100
16.5000 |
120.650
4.7500 |
11.9
0.47 |
11.9
0.47 |
13000
2920000 |
970
219000 |
90.7
200.0 |
| XC760 | 2 | 206.375
8.1250 |
419.100
16.5000 |
120.650
4.7500 |
9.7
0.38 |
9.7
0.38 |
11400
2560000 |
870
195000 |
88.2
194.5 |
| T9020 | 4 | 228.600
9.0000 |
431.800
17.0000 |
88.773
3.4950 |
1.5
0.06 |
9.7
0.38 |
10900
2450000 |
850
192000 |
65.7
144.8 |
| T911 | 4 | 228.600
9.0000 |
482.600
19.0000 |
104.775
4.1250 |
1.5
0.06 |
11.2
0.44 |
15200
3420000 |
1140
256000 |
98.3
216.6 |
| T911F(3) | 5 | 228.600
9.0000 |
482.600
19.0000 |
104.775
4.1250 |
1.5
0.06 |
11.2
0.44 |
21200
4750000 |
10850
2440000 |
97.9
215.9 |
| T911A | 4 | 234.950
9.2500 |
482.600
19.0000 |
104.775
4.1250 |
1.5
0.06 |
11.2
0.44 |
15200
3420000 |
1140
256000 |
103.0
227.1 |
| T921 | 4 | 234.950
9.2500 |
546.100
21.5000 |
127.000
5.0000 |
1.5
0.06 |
16.0
0.63 |
21300
4780000 |
1570
353000 |
171.0
377.0 |
| T921F(3) | 5 | 234.950
9.2500 |
546.100
21.5000 |
127.000
5.0000 |
1.5
0.06 |
16.0
0.63 |
30000
6750000 |
15550
3500000 |
171.0
377.0 |
| T9250F(3) | 5 | 234.950
9.2500 |
546.100
21.5000 |
127.000
5.0000 |
1.5
0.06 |
16.0
0.63 |
31200
7050000 |
16050
3600000 |
164.8
363.4 |
| N-3235-A | 3 | 241.300
9.5000 |
495.300
19.5000 |
127.000
5.0000 |
11.2
0.44 |
11.2
0.44 |
18600
4180000 |
1320
298000 |
140.0
308.0 |
| N-3517-A | 3 | 241.300
9.5000 |
495.300
19.5000 |
127.000
5.0000 |
12.7
0.50 |
12.7
0.50 |
19000
4280000 |
1590
357000 |
137.0
303.0 |
