Z-526073.PRL FAG bearings

Z-526073.PRL FAG bearings

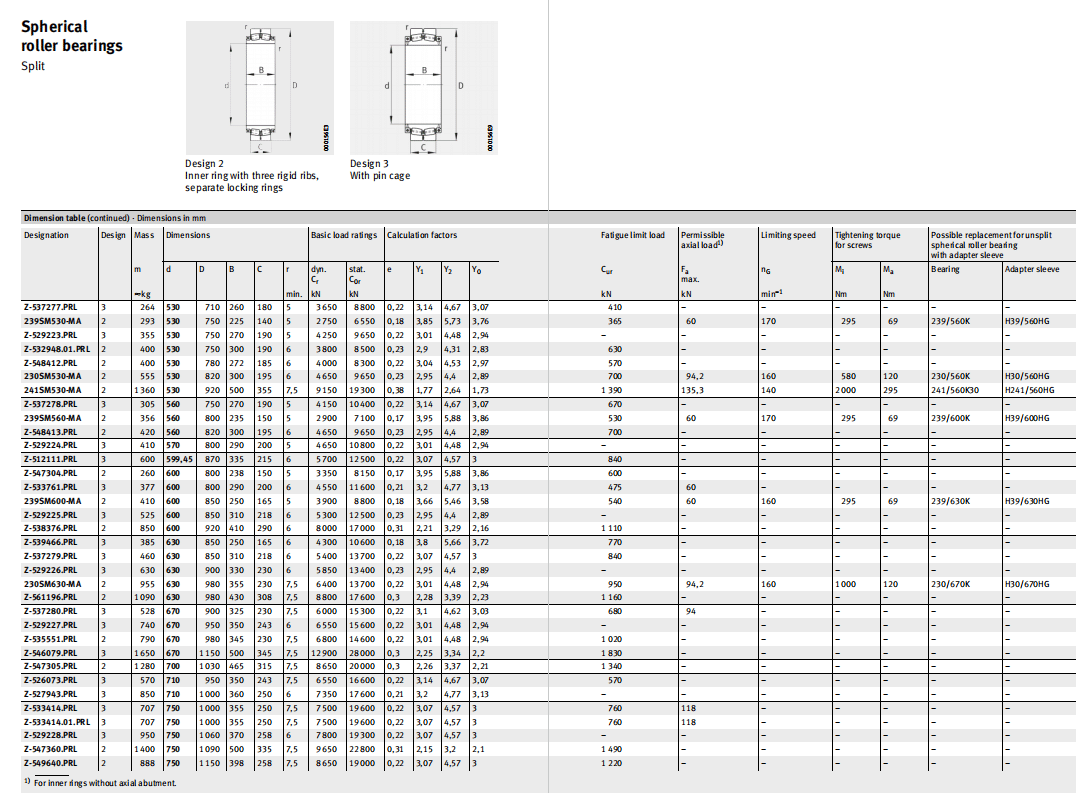

Spherical roller bearings

With cylindrical or tapered bore Split

Triple ring bearings

 FAG Tapered roller bearings



Designation Design Mass



m

kg

 Dimensions Basic load ratings Calculation factors



e         Y1         Y2         Y0
      d D B C r

min.

 dyn.

Cr

kN

 stat.

C0r

kN


Z-537277.PRL 3 264 530 710 260 180 5 3650 8800 0,22 3,14 4,67 3,07
239SM530-MA 2 293 530 750 225 140 5 2750 6550 0,18 3,85 5,73 3,76
Z-529223.PRL 3 355 530 750 270 190 5 4250 9650 0,22 3,01 4,48 2,94
Z-532948.01.PRL 2 400 530 750 300 190 6 3800 8500 0,23 2,9 4,31 2,83
Z-548412.PRL 2 400 530 780 272 185 6 4000 8300 0,22 3,04 4,53 2,97
230SM530-MA 2 555 530 820 300 195 6 4650 9650 0,23 2,95 4,4 2,89
241SM530-MA 2 1360 530 920 500 355 7,5 9150 19 300 0,38 1,77 2,64 1,73
Z-537278.PRL 3 305 560 750 270 190 5 4150 10 400 0,22 3,14 4,67 3,07
239SM560-MA 2 356 560 800 235 150 5 2900 7100 0,17 3,95 5,88 3,86
Z-548413.PRL 2 420 560 820 300 195 6 4650 9650 0,23 2,95 4,4 2,89
Z-529224.PRL 3 410 570 800 290 200 5 4650 10 800 0,22 3,01 4,48 2,94
Z-512111.PRL 3 600 599,45 870 335 215 6 5700 12 500 0,22 3,07 4,57 3
Z-547304.PRL 2 260 600 800 238 150 5 3350 8150 0,17 3,95 5,88 3,86
Z-533761.PRL 3 377 600 800 290 200 6 4550 11 600 0,21 3,2 4,77 3,13
239SM600-MA 2 410 600 850 250 165 5 3900 8800 0,18 3,66 5,46 3,58
Z-529225.PRL 3 525 600 850 310 218 6 5300 12 500 0,23 2,95 4,4 2,89
Z-538376.PRL 2 850 600 920 410 290 6 8000 17 000 0,31 2,21 3,29 2,16
Z-539466.PRL 3 385 630 850 250 165 6 4300 10 600 0,18 3,8 5,66 3,72
Z-537279.PRL 3 460 630 850 310 218 6 5400 13 700 0,22 3,07 4,57 3
Z-529226.PRL 3 630 630 900 330 230 6 5850 13 400 0,23 2,95 4,4 2,89
230SM630-MA 2 955 630 980 355 230 7,5 6400 13 700 0,22 3,01 4,48 2,94
Z-561196.PRL 2 1090 630 980 430 308 7,5 8800 17 600 0,3 2,28 3,39 2,23
Z-537280.PRL 3 528 670 900 325 230 7,5 6000 15 300 0,22 3,1 4,62 3,03
Z-529227.PRL 3 740 670 950 350 243 6 6550 15 600 0,22 3,01 4,48 2,94
Z-535551.PRL 2 790 670 980 345 230 7,5 6800 14 600 0,22 3,01 4,48 2,94
Z-546079.PRL 3 1650 670 1 150 500 345 7,5 12 900 28 000 0,3 2,25 3,34 2,2
Z-547305.PRL 2 1280 700 1 030 465 315 7,5 8650 20 000 0,3 2,26 3,37 2,21
Z-526073.PRL 3 570 710 950 350 243 7,5 6550 16 600 0,22 3,14 4,67 3,07
Z-527943.PRL 3 850 710 1 000 360 250 6 7350 17 600 0,21 3,2 4,77 3,13
Z-533414.PRL 3 707 750 1 000 355 250 7,5 7500 19 600 0,22 3,07 4,57 3
Z-533414.01.PRL 3 707 750 1 000 355 250 7,5 7500 19 600 0,22 3,07 4,57 3
Z-529228.PRL 3 950 750 1 060 370 258 6 7800 19 300 0,22 3,07 4,57 3
Z-547360.PRL 2 1400 750 1 090 500 335 7,5 9650 22 800 0,31 2,15 3,2 2,1
Z-549640.PRL 2 888 750 1 150 398 258 7,5 8650 19 000 0,22 3,07 4,57 3
