Z-531156.04.DRGL FAG bearings

Z-531156.04.DRGL FAG bearings

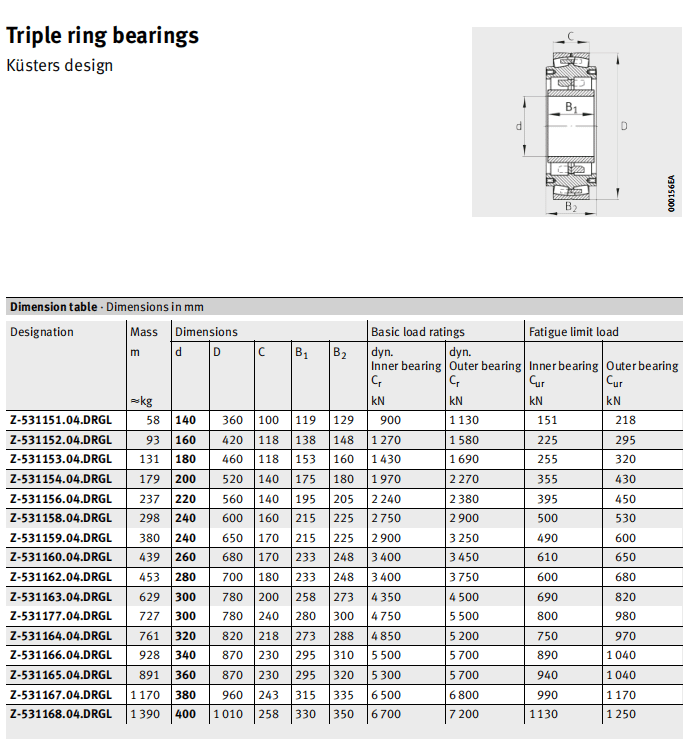

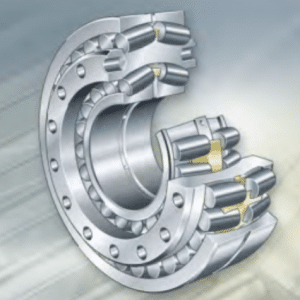

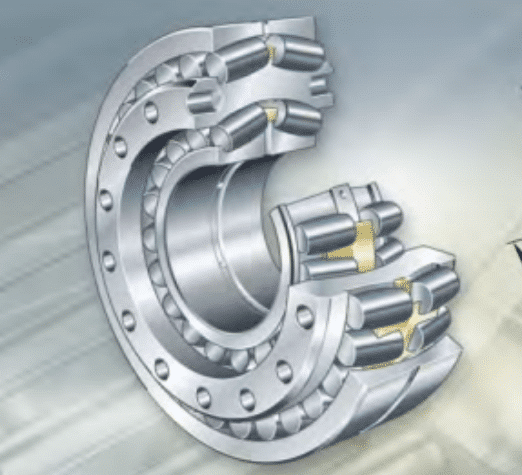

Triple ring bearings

 FAG Triple ring bearings

Designation Mass

m



kg

Dimensions Basic load ratings Fatigue limit load
    d D C B1 B2 dyn.

Inner bearing Cr

kN

dyn.

Outer bearing Cr

kN

Inner bearing

C

Outer bearing

C

Z531151.04.DRGL 58 140 360 100 119 129 900 1130 151 218
Z531152.04.DRGL 93 160 420 118 138 148 1 270 1580 225 295
Z531153.04.DRGL 131 180 460 118 153 160 1 430 1690 255 320
Z531154.04.DRGL 179 200 520 140 175 180 1 970 2270 355 430
Z531156.04.DRGL 237 220 560 140 195 205 2 240 2380 395 450
Z531158.04.DRGL 298 240 600 160 215 225 2 750 2900 500 530
Z531159.04.DRGL 380 240 650 170 215 225 2 900 3250 490 600
Z531160.04.DRGL 439 260 680 170 233 248 3 400 3450 610 650
Z531162.04.DRGL 453 280 700 180 233 248 3 400 3750 600 680
Z531163.04.DRGL 629 300 780 200 258 273 4 350 4500 690 820
Z531177.04.DRGL 727 300 780 240 280 300 4 750 5500 800 980
Z531164.04.DRGL 761 320 820 218 273 288 4 850 5200 750 970
Z531166.04.DRGL 928 340 870 230 295 310 5 500 5700 890 1 040
Z531165.04.DRGL 891 360 870 230 295 320 5 300 5700 940 1 040
Z531167.04.DRGL 1170 380 960 243 315 335 6 500 6800 990 1 170
Z531168.04.DRGL 1390 400 1010 258 330 350 6 700 7200 1130 1 250
