Z-562132.04.DRGL FAG bearings

Z-562132.04.DRGL FAG bearings

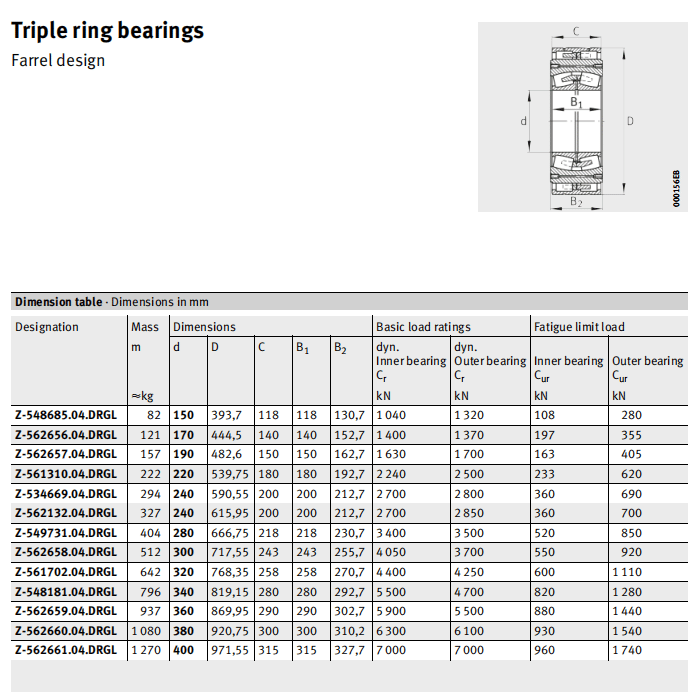

Triple ring bearings

 FAG Triple ring bearings

Designation Mass

m



kg

Dimensions Basic load ratings Fatigue limit load
    d D C B1 B2 dyn.

Inner bearing Cr

kN

dyn.

Outer bearing Cr

kN

Inner bearing

C

Outer bearing

C

Z548685.04.DRGL 82 150 393,7 118 118 130,7 1040 1320 108 280
Z562656.04.DRGL 121 170 444,5 140 140 152,7 1400 1370 197 355
Z562657.04.DRGL 157 190 482,6 150 150 162,7 1630 1700 163 405
Z561310.04.DRGL 222 220 539,75 180 180 192,7 2240 2500 233 620
Z534669.04.DRGL

Z562132.04.DRGL

294

327

240

240

590,55

615,95

200

200

200

200

212,7

212,7

2700

2700

2800

2850

360

360

690

700

Z549731.04.DRGL 404 280 666,75 218 218 230,7 3400 3500 520 850
Z562658.04.DRGL 512 300 717,55 243 243 255,7 4050 3700 550 920
Z561702.04.DRGL 642 320 768,35 258 258 270,7 4400 4250 600 1110
Z548181.04.DRGL 796 340 819,15 280 280 292,7 5500 4700 820 1280
Z562659.04.DRGL 937 360 869,95 290 290 302,7 5900 5500 880 1440
Z562660.04.DRGL 1 080 380 920,75 300 300 310,2 6300 6100 930 1540
Z562661.04.DRGL 1 270 400 971,55 315 315 327,7 7000 7000 960 1740
