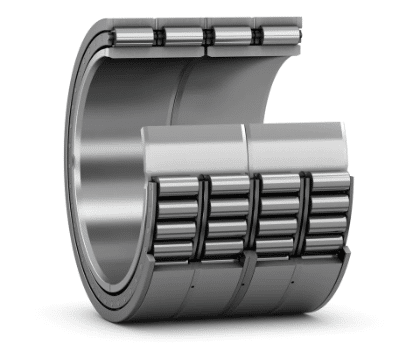

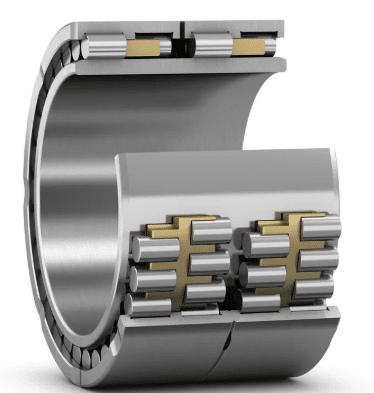

SKF Four-row cylindrical roller bearings
| Designation | Principal dimensions | Basic load ratings | Design variant/feature | ||||
| dynamic | static | ||||||
| d[mm] | D[mm] | B[mm] | C[mm] | C[kN] | C0[kN] | ||
| 239509 FA | 660 | 820 | 440 | 440 | 8 090 | 22 800 | BC4.7/W33W |
| 312844/VJ202 | 529.91 | 870 | 670 | 670 | 16 800 | 33 500 | BC4.9/W33WI |
| 312979 D | 760 | 1 080 | 790 | 790 | 23 800 | 65 500 | BC4.10/W33WI |
| 313189 A | 559.84 | 920 | 710 | 710 | 20 100 | 45 500 | BC4.10/W33WI |
| 313513 | 420 | 600 | 440 | 440 | 7 210 | 17 600 | BC4.8/W33WI |
| 313535 D | 536.176 | 762.03 | 558.8 | 558.8 | 11 400 | 29 000 | BC4.10/W33GWI |
| 313555 B/VJ202 | 420 | 580 | 320 | 320 | 4 680 | 10 800 | BC4.7/W33 |
| 313685 B | 759 | 1 210 | 740 | 740 | 25 500 | 85 000 | BC4.10/W33WI |
| 315175 C | 600 | 820 | 575 | 575 | 14 000 | 36 000 | BC4.10/W33GWI |
| 315196 A | 460 | 650 | 424 | 424 | 8 250 | 18 300 | BC4.10/W33WI |
| 315265 | 937.5 | 1 270.25 | 825.5 | 825.5 | 28 100 | 83 000 | BC4.10/W33WI |
| 315526 | 606.667 | 920 | 640 | 640 | 16 500 | 45 000 | BC4T.5/W33 |
| 315802/VJ202 | 400 | 590 | 440 | 440 | 7 920 | 16 600 | BC4.7/W33WI |
| 315811 E | 450 | 590 | 300 | 300 | 3 910 | 12 000 | BC4.5/W20 |
| 315826 B | 850 | 1 150 | 840 | 840 | 27 500 | 75 000 | BC4.10/W33WI |
| 316083 A | 500 | 670 | 450 | 450 | 8 250 | 22 000 | BC4.10/W33GWI |
| 316691 | 550 | 740 | 510 | 510 | 11 000 | 27 000 | BC4.10/W33WI |
| 319254/VJ202 | 500 | 650 | 260 | 260 | 4 400 | 10 200 | BC4.7/WO |
| 319320 | 480 | 680 | 420 | 420 | 9 130 | 19 300 | BC4.10/W33WI |
| 635043 | 440 | 660 | 340 | 340 | 7 210 | 13 700 | BC4.4/WO |
